Rebar Scanner Manufacturer,Supplier and Exporter in India
Product Code : TVT-CTE-10535

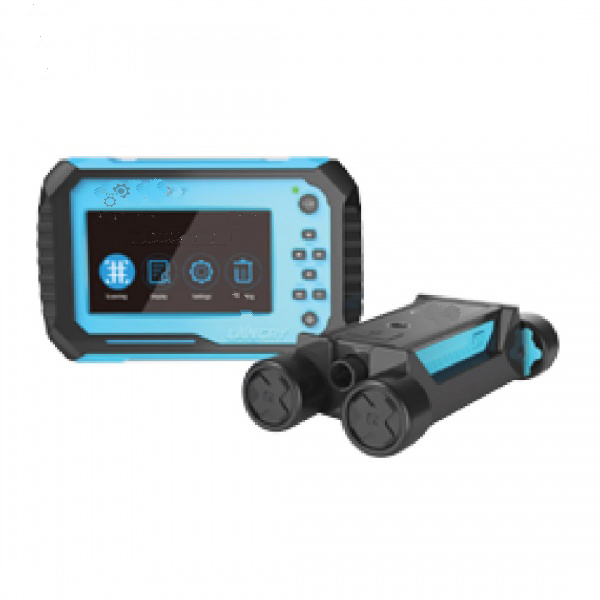

The Rebar Scanner is a portable, ergonomically designed intelligent non-destructive testing instrument for the structural inspection of reinforced concrete, measuring rebar cover depth, rebar diameter, and the distribution of reinforcement at the concrete surface.
How It Works
The scanner is passed across the concrete surface; its electromagnetic sensor detects the embedded reinforcing bars, and the touchable 854 x 480 full-colour LCD screen displays the measured concrete cover depth, estimated rebar diameter, and rebar spacing/distribution in real time, with data transferable via Bluetooth or USB for reporting.
Technical Specifications
| Parameter | Specification |
|---|---|
| Applicable Rebar Diameter Range | Ø6mm – Ø50mm |
| Protective Layer Thickness Range | First Stage: 6 – 90mm; Second Stage: 6 – 180mm |
| Max. Allowable Deviation, Cover Depth | ±1mm (6-80mm); ±2mm (81-120mm); ±3mm (121-140mm); ±4mm (141-180mm) |
| Battery Lifetime | 38 hours |
| Power | Built-in rechargeable lithium battery |
| Data Transmission | Bluetooth or USB |
| Dimension | 200(L) x 125(W) x 50(H) mm |
Applications
Used for non-destructive detection of rebar cover depth, diameter and spacing in reinforced concrete structures per BS 1881-204 (recommendations on the use of electromagnetic covermeters), important for verifying as-built reinforcement placement against design drawings without breaking out the concrete cover.
Related Products & Category
This machine is part of the Concrete Testing Equipments range at Tvet Equipments. Related machines include: Scanner Rebar, Rebar Corrosion Tester.
Frequently Asked Questions
What does the Rebar Scanner measure?
Concrete cover depth, rebar diameter, and rebar spacing/distribution at the concrete surface, without breaking out the concrete.
What is the rebar diameter detection range?
Ø6mm to Ø50mm.
How does this differ from the Scanner Rebar model?
This model covers a protective layer thickness range up to 180mm; the Scanner Rebar model extends further (up to 200mm) with additional features such as stirrup-spacing correction and greater data storage capacity — see that listing for details.
