V - Funnel Manufacturer,Supplier and Exporter in India
Product Code : TVT-CTE-10493

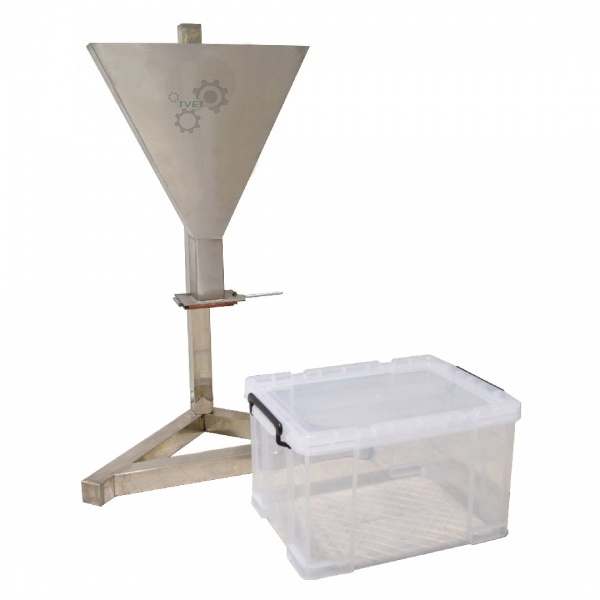

The V-Funnel assesses the filling ability of self-compacting concrete (SCC) — how readily the mix flows through a narrow opening under its own weight, without segregation or blocking.
How It Works
The V-shaped funnel is filled with self-compacting concrete, and a trapdoor at the bottom is opened, allowing the concrete to flow out through the narrow opening under gravity. The time taken for the funnel to empty completely (the V-funnel flow time) is recorded with a stopwatch: a shorter flow time indicates a more flowable mix, while a longer time (or the flow stopping before the funnel empties) indicates poor filling ability or blocking, often due to segregation or an unsuitable aggregate-to-paste ratio.
Technical Specifications
| Parameter | Specification |
|---|---|
| Dimension | 640 (L) x 770 (W) x 1050 (H) mm |
| Approx. Weight | 17 kg |
Applications
Used to assess the filling ability (and, by extension, viscosity) of self-compacting concrete (SCC) mixes per EN 12350-9, commonly used alongside the slump-flow and L-Box tests as part of a full SCC workability assessment.
Related Products & Category
This machine is part of the Concrete Testing Equipments range at Tvet Equipments. Related machines include: L-Box, Concrete Flow Table Apparatus.
Frequently Asked Questions
What does the V-Funnel test measure?
The time taken for self-compacting concrete to flow completely out of the funnel under gravity (the V-funnel flow time), which indicates the mix\u2019s filling ability and relative viscosity, per EN 12350-9.
What does a longer flow time indicate?
A longer flow time, or the flow stopping before the funnel empties, indicates poorer filling ability — often linked to segregation or an unsuitable aggregate-to-paste ratio in the mix.
Is the V-Funnel test used alone or with other SCC tests?
It is typically used alongside other SCC-specific tests such as the slump-flow test and the L-Box (passing ability) test, to give a fuller picture of a self-compacting mix\u2019s workability.
