Scanner Rebar Manufacturer,Supplier and Exporter in India
Product Code : TVT-CTE-10536

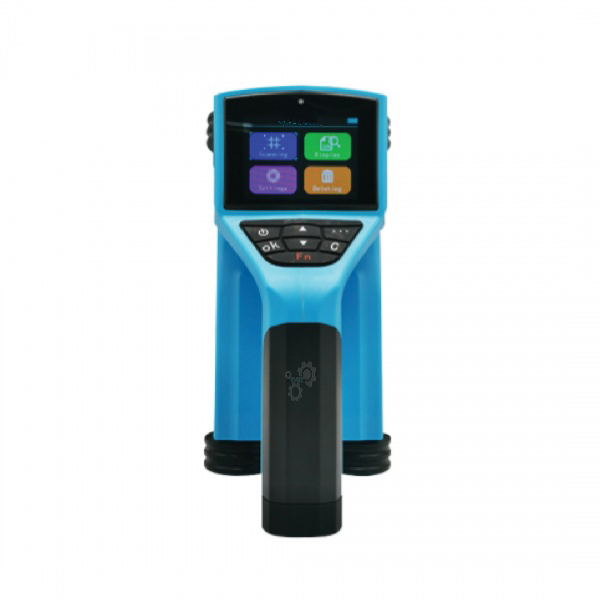

The Scanner Rebar is a portable, ergonomically designed intelligent non-destructive testing instrument for the structural inspection of reinforced concrete, offering an extended measurement range and additional accuracy features compared with the standard Rebar Scanner model.
How It Works
A high-precision linear Hall sensor detects embedded reinforcing bars as the unit is passed across the concrete surface; support for stirrup spacing and diameter correction improves cover-depth measurement accuracy, and the high-power solid transmitting coil gives strong anti-interference performance. Results are shown on the touchable 854 x 480 full-colour LCD screen and can be analysed further using the accompanying professional PC software, with data transferable via Bluetooth or USB.
Technical Specifications
| Parameter | Specification |
|---|---|
| Applicable Rebar Diameter Range | Ø6mm – Ø50mm |
| Protective Layer Thickness Range | First Stage: 2 – 100mm; Second Stage: 2 – 200mm |
| Max. Allowable Deviation, Cover Depth | ±1mm (6-80mm); ±2mm (81-120mm); ±3mm (121-160mm); ±4mm (161-200mm) |
| Max. Deviation, Diameter Estimate | ±1 spec |
| Display Accuracy, Diameter Estimate | 0.1mm |
| Battery Lifetime | 38 hours |
| Power | Built-in rechargeable lithium battery, 6400mAh |
| Data Storage | Up to 5,000 objects and 500,000 measuring points |
| Data Transmission | Bluetooth or USB |
| Dimension / Weight | 235(L) x 120(W) x 130(H) mm / 1 kg |
Applications
Used for non-destructive detection of rebar cover depth, diameter and spacing in reinforced concrete structures per BS 1881-204 (recommendations on the use of electromagnetic covermeters), with an extended thickness range and stirrup-correction features suited to more demanding structural inspection and forensic assessment work than the standard Rebar Scanner model.
Related Products & Category
This machine is part of the Concrete Testing Equipments range at Tvet Equipments. Related machines include: Rebar Scanner, Rebar Corrosion Tester.
Frequently Asked Questions
How does the Scanner Rebar differ from the standard Rebar Scanner?
It covers a wider protective layer thickness range (2-200mm vs 6-180mm), adds diameter-estimate accuracy specs, stirrup-spacing/diameter correction, a larger 6400mAh battery, and storage for up to 5,000 objects/500,000 measuring points.
What is the diameter estimate accuracy?
Display accuracy of 0.1mm, with a maximum deviation of ±1 spec on the diameter estimate.
How much test data can this unit store?
Up to 5,000 objects and 500,000 individual measuring points.
