Flexural Machine Manufacturer,Supplier and Exporter in India
Product Code : TVT-CTE-10464

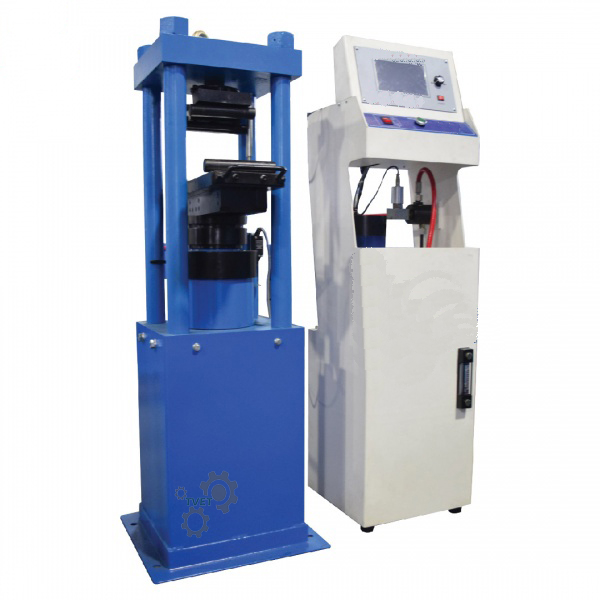

The Flexural Machine is a self-contained, DC-motor-driven flexural (bending) testing machine for concrete beams, available in 100 kN and 150 kN capacity versions, needing no separate compression machine to supply hydraulic power.
How It Works
An imported DC motor drives the machine's own hydraulic system, giving lower noise, lower oil temperature, and lower power consumption than a conventional AC-driven pump. The rigid, compact frame is designed to minimise deflection at maximum pressure for accurate readings, and the console's load sensor (30 kPa or 50 kPa depending on capacity version) measures applied load as the beam is loaded to failure across its set support span. Loading span can be set to 100mm, 150mm, or a single-point configuration, letting the machine run either third-point or centre-point flexural tests.
Technical Specifications
| Parameter | Specification |
|---|---|
| Max. Capacity | 100 kN x 0.1 kN Sensitivity or 150 kN x 0.1 kN Sensitivity |
| Load Sensor Capacity | 30 kPa (100kN version) or 50 kPa (150kN version) |
| Roller Size | Ø28 mm x 160 mm long |
| Max. Vertical Clearance | 165 mm |
| Max. Horizontal Clearance | 160 mm |
| Max. Piston Travel | 80 mm |
| Loading Span | 100 mm / 150 mm or Single-point |
| Support Span | 300 mm / 450 mm |
| Frame Dimension | 300 (L) x 340 (W) x 1108 (H) mm |
| Console Unit Dimension | 350 (L) x 400 (W) x 1158 (H) mm |
| Power | 220V, 2.5 Amp, 1/2 Ph, 50/60 Hz |
| Approx. Product Weight | 261 kg (100kN version) / 260 kg (150kN version) |
Applications
Used to run third-point and centre-point flexural strength tests on concrete beams per ASTM C78 / C293, IS 516, and EN 12390-5, as a self-contained alternative to fitting a flexural frame attachment to a compression testing machine.
Related Products & Category
This machine is part of the Concrete Testing Equipments range at Tvet Equipments. Related machines include: 100kN Hydraulic Flexural Frame, Portable Flexural Test Device.
Frequently Asked Questions
Does this machine need a separate compression machine to operate?
No — it has its own DC-motor-driven hydraulic system and console, unlike the 100kN Hydraulic Flexural Frame, which connects to and draws hydraulic power from an existing compression machine.
What capacity options are available?
100 kN and 150 kN versions, each with a matched load sensor (30 kPa and 50 kPa respectively).
What support span settings does the machine offer?
300mm and 450mm support spans, paired with 100mm/150mm loading spans or a single-point loading configuration, to suit different standard beam sizes under ASTM C78/C293 and IS 516.
