Splitting Tensile Device Manufacturer,Supplier and Exporter in India
Product Code : TVT-CTE-10472

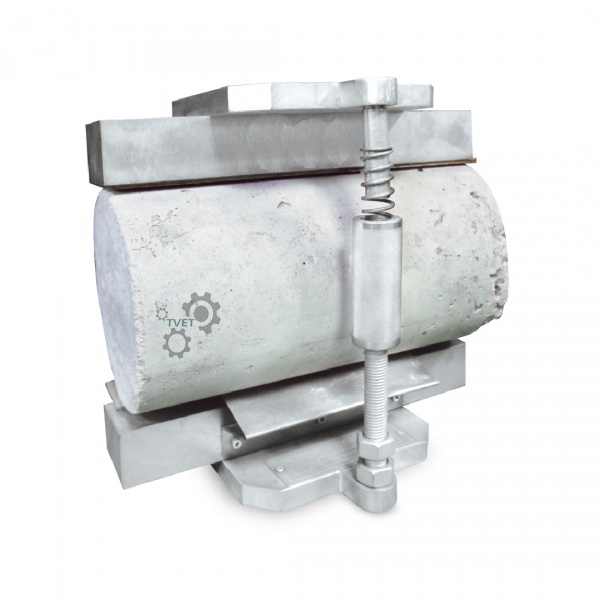

The Splitting Tensile Device is used to perform the splitting tensile (Brazilian) test on concrete cylinder specimens across a range of common diameters, giving an indirect measure of concrete's tensile strength.
How It Works
A cylindrical concrete specimen is placed on its side between the platens of a compression testing machine, with the load applied along a line across its diameter rather than on its flat circular ends. Packing strips distribute the line load evenly along the specimen's length. As the load increases, the specimen splits along the loaded diametral plane in tension, and the tensile strength is calculated from the failure load, the cylinder's diameter, and its length.
Technical Specifications
| Parameter | Specification |
|---|---|
| Specimen Size | Ø100 x 200mm (Ø4" x 8") to Ø150 x 300mm (Ø6" x 12"), and Ø160 x 320mm |
| Packing Size | 3 x 15 x 350 mm |
| Approx. Weight | 18 kg |
Applications
Used to determine the splitting tensile strength of concrete cylinder specimens per ASTM C496, IS 5816, and EN 12390-6, run on a standard compression testing machine, giving an indirect measure of concrete tensile strength that is important for pavement and structural design where tensile behaviour matters.
Related Products & Category
This machine is part of the Concrete Testing Equipments range at Tvet Equipments. Related machines include: Welded Frame Compression Machine 3000kN, Cast Iron Beam Moulds.
Frequently Asked Questions
What does the splitting tensile test measure?
An indirect measure of concrete tensile strength, calculated from the load at which a cylinder specimen splits along its loaded diametral plane, per ASTM C496/IS 5816/EN 12390-6.
What cylinder sizes does this device support?
Ø100 x 200mm (Ø4" x 8") up to Ø150 x 300mm (Ø6" x 12"), plus a Ø160 x 320mm size.
Does this device need its own compression machine?
No — it is a test fixture (packing strips/loading accessory) used together with an existing compression testing machine, not a standalone machine.
