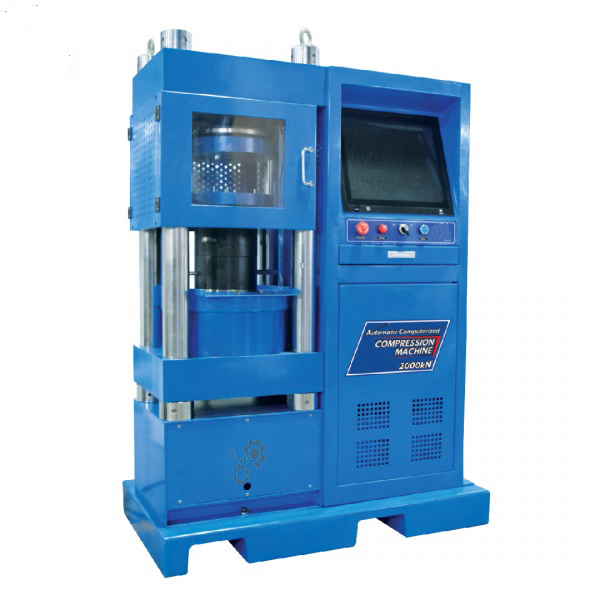

Touch Screen Machine 2000kN Manufacturer,Supplier and Exporter in India
Product Code : TVT-CTE-10446
The Touch Screen Machine 2000kN is a computerised 2000 kN compression and flexural testing machine running Tvet Equipments' Super Test 7.2 software, with an imported DC motor drive said to cut energy use by up to 70% compared with conventional hydraulic drives.
How It Works
The touch-screen console runs Super Test 7.2, which lets the operator input test number, target strength, specimen age, sample size (cube, block or cylinder) and loading speed before each test, then displays load against time in real time during the test. Up to 10 samples can be added to a single test report, results are stored in computer memory without practical limit, and reports can include customer information, mix ratio and project details entered manually. Calibration can be run automatically or manually with auto-correction for load error, and the software carries separate programs for compression and flexural testing.
Technical Specifications
| Parameter | Specification |
|---|---|
| Max. Vertical Clearance | 415 mm |
| Max. Horizontal Clearance | 270 mm |
| Capacity | 2000 kN |
| Compression Platen Diameter | 295 mm |
| Piston Ram Diameter | 250 mm |
| Piston Ram Travel | 50 mm |
| Column Diameter | Ø70 mm |
| Accuracy Class | Class 1 |
| Relative Error | ±1% |
| Repeatability Relative Error | 1% |
| Resolution | 0.1 - 0.001 kN |
| Sensor Accuracy | 0.1% |
| Max. Hydraulic Working Pressure | 50 MPa |
| Product Dimension | 965 x 500 x 1400 mm |
| Packing Dimension | 1065 x 600 x 1500 mm |
| Approx. Product Weight | 900 kg |
| Approx. Packing Weight | 1000 kg |
| Power | 0.75 kW, 220V, 50/60 Hz, 1 Ph, 6 Amp |
Applications
Used for compressive strength testing of concrete cubes and cylinders per ASTM C39, IS 516, and EN 12390-4, and, using the software's dedicated flexural program together with a flexural bend-test jig, for flexural strength testing of concrete beams per ASTM C78 / C293, IS 516, and EN 12390-5.
Related Products & Category

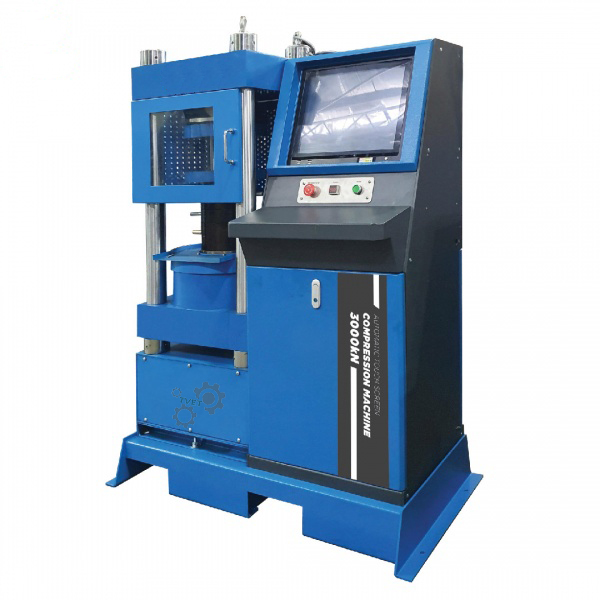

This machine is part of the Concrete Testing Equipments range at Tvet Equipments. Related machines include: Compression Machine (Light Duty) 2000kN, Automatic Touch Screen Compression Machine 3000kN.
Frequently Asked Questions
What does the Super Test 7.2 software let the operator record?
Test number, target strength, specimen age, sample size (cube, block or cylinder), loading speed, and free-text project/customer/mix information, with a real-time load-vs-time curve and immediate report printing.
How many samples can one test report cover?
Up to 10 samples can be added to a single report, with results stored in computer memory without a practical limit.
Does this machine also test flexural strength?
Yes — the software includes a dedicated flexural test program; a flexural bend-test jig accessory is needed to physically run the flexural test per ASTM C293/EN 12390-5.
