100mm Hybrid Fiblre Plastic Cube Mould Manufacturer,Supplier and Exporter in India
Product Code : TVT-CTE-10484

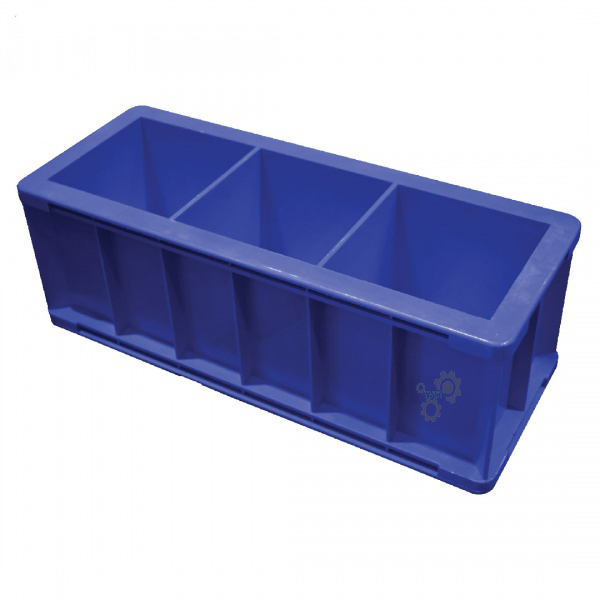

The 100mm Hybrid Fibre Plastic Cube Mould is a one-piece 3-gang ABS plastic cube mould, casting three 100mm cube specimens from a single mould body without any assembly or disassembly, made from strong, lightweight, deformation-resistant plastic.
How It Works
Because the mould is a single moulded piece rather than a bolted or clipped assembly, there is no mounting or dismounting operation before or after casting, saving time and labour compared with multi-part gang moulds. Once the concrete has cured sufficiently, each of the three cast cubes is expelled using compressed air or water rather than being knocked out. The mould needs only a simple clean and demoulding oil application before being ready for reuse.
Technical Specifications
| Parameter | Specification |
|---|---|
| Configuration | One-piece 3-gang mould (casts three 100mm cubes at once) |
| Material | ABS Plastic |
| Approx. Weight | 0.9 kg |
| Dimension | 134 x 340 x 117 mm (L x W x H) |
Applications
Used to cast three replicate standard 100mm concrete cube specimens at once for compressive strength testing per ASTM C31, IS 516, and EN 12390-1, improving casting throughput for labs needing multiple cubes per batch without the weight of a metal gang mould.
Related Products & Category
This machine is part of the Concrete Testing Equipments range at Tvet Equipments. Related machines include: 150mm Hybrid Fibre Plastic Cube Mould, Mild Steel Cube Moulds.
Frequently Asked Questions
How many cubes does this mould cast at once?
Three 100mm cube specimens, from a single one-piece mould body.
Why does this mould need no mounting or dismounting?
It is moulded as a single ABS plastic piece rather than assembled from separate parts, unlike bolted metal gang moulds, saving setup and teardown time between uses.
How is the specimen removed after curing?
By compressed air or water, rather than knocking it out, which helps protect the cast cube\u2019s edges.
