Acrylic Flow Table Manufacturer,Supplier and Exporter in India
Product Code : TVT-CTE-10513

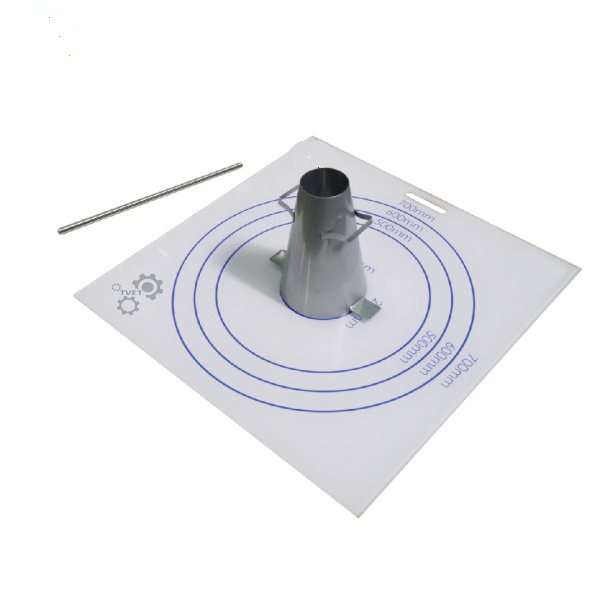

The Acrylic Flow Table determines the slump flow and the time needed to spread to a 500mm diameter for self-compacting concrete (SCC), built with a special durable acrylic base plate that gives clearly visible reference circles.
How It Works
A slump cone filled with SCC is placed on the acrylic base plate, marked with concentric reference circles; when the cone is lifted, the concrete spreads under its own weight, and the time to reach a 500mm-diameter spread (T500) together with the final spread diameter is recorded against the visible circles.
Technical Specifications
| Parameter | Specification |
|---|---|
| Maximum Aggregate Size | Less than 40 mm |
| Base Plate Material | Durable acrylic with visible reference circles |
| Approx. Weight | 9.5 kg |
Applications
Used to determine the slump-flow spread and T500 flow time of self-compacting concrete per EN 12350-8 (slump-flow test), a core qualification test for SCC mix designs alongside J-Ring, V-Funnel and sieve segregation testing.
Related Products & Category
This machine is part of the Concrete Testing Equipments range at Tvet Equipments. Related machines include: J-Ring Apparatus, V-Funnel.
Frequently Asked Questions
What does the slump-flow test measure?
It measures how far self-compacting concrete spreads under its own weight after the slump cone is lifted, and the time taken (T500) to reach a 500mm-diameter spread.
What is the maximum aggregate size for this test?
Less than 40mm, per the manufacturer\u2019s specification.
Why is the base plate made of acrylic?
The acrylic base plate is durable and gives clearly visible reference circles, making it easier to read the spread diameter accurately during the test.
