Low Strain Pile Integrity Tester Manufacturer,Supplier and Exporter in India
Product Code : TVT-CTE-10530

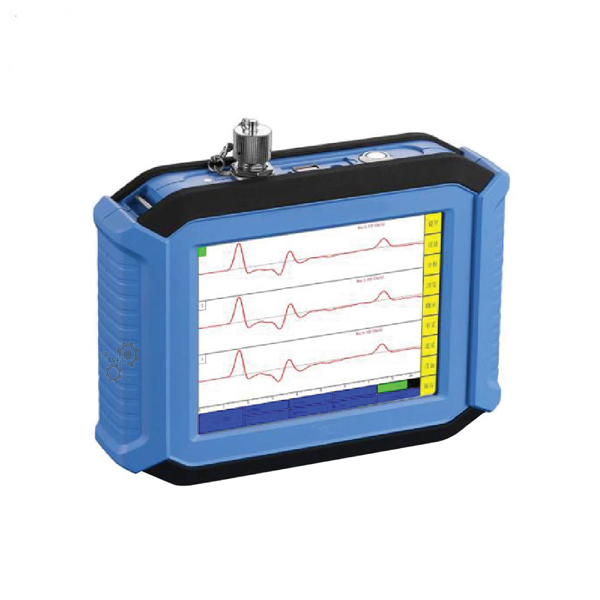

The Low Strain Pile Integrity Tester is a portable, touch-screen instrument for assessing the structural integrity of foundation piles using the reflected-wave (low-strain impact) method, with a piezoelectric accelerometer/speedometer sensor and rugged, high-strength engineering-plastic housing.
How It Works
A light hammer impact is applied to the pile top, generating a low-strain stress wave that travels down the pile; when the wave encounters a change in cross-section or concrete quality (a defect, neck, bulge, or the pile toe), it generates a reflected wave observed back at the pile top. By analysing the propagation time, amplitude and phase of this reflected wave, the instrument evaluates the pile's structural integrity along its length.
Technical Specifications
| Parameter | Specification |
|---|---|
| Display | 6.4" true-colour LCD, 640x480 resolution, adjustable backlight |
| Storage Capacity | 16GB electronic hard disk |
| Signal Acquisition | Wired |
| Master Control System | Low-powered embedded system, ?1GHz base frequency, 512MB memory |
| Sampling Interval | 5 – 1000 µs |
| Floating Point Magnification | 1 – 256 |
| Recording Length | 1k |
| A/D Conversion Accuracy | 24-bit instantaneous floating point |
| System Noise Voltage | < 20 µV |
| Dynamic Range | ? 100 dB |
| Frequency Bandwidth | 2 – 12,000 Hz |
| Sensor Bandwidth | 0.5 – 9,000 Hz |
| Number of Channels | 1 |
| Sensor Type | Piezoelectric accelerometer & speedometer |
| Trigger Level | Seven-level selectable |
| Power Supply | Removable lithium battery + desktop charger, ?10 hours service life |
| Operating Temperature | -20°C to +55°C |
| Shell | High-strength engineering plastics |
| Data Report Method | USB |
| Dimensions | 220 x 160 x 56 mm |
| Weight | 1.3 kg (including battery) |
Applications
Used for low-strain reflected-wave integrity testing of cast-in-situ and precast foundation piles per ASTM D5882 (Standard Test Method for Low Strain Impact Integrity Testing of Deep Foundations), commonly required alongside dynamic pile-testing regulations for highway, railway and building foundation work.
Related Products & Category
This machine is part of the Concrete Testing Equipments range at Tvet Equipments. Related machines include: Rebar Corrosion Tester, Concrete Testing Equipments.
Frequently Asked Questions
What does the Low Strain Pile Integrity Tester detect?
It detects changes in a pile\u2019s cross-section or concrete quality — such as defects, necking, bulging, or the pile toe — by analysing reflected stress waves from a light hammer impact at the pile top.
How many test channels does this instrument have?
One channel, using a piezoelectric accelerometer and speedometer sensor.
How long does the battery last in the field?
The removable lithium battery provides a service life of 10 hours or more per charge, with a desktop charger supplied.
