Analogue Compression Machine 2000kN Manufacturer,Supplier and Exporter in India
Product Code : TVT-CTE-10438

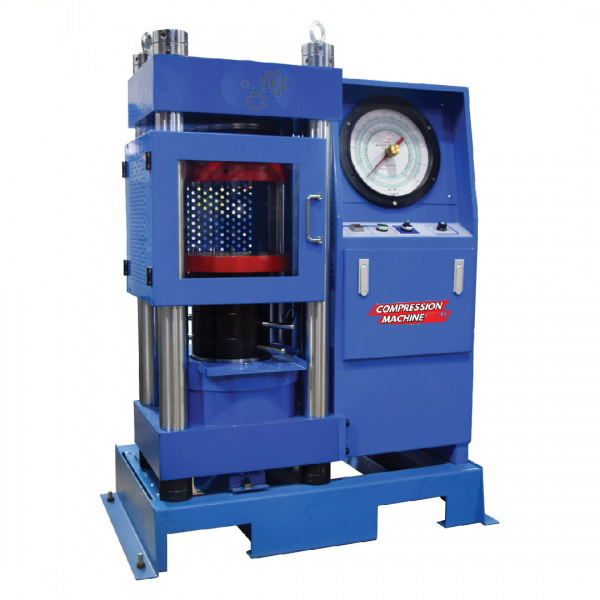

The Analogue Compression Machine 2000kN from Tvet Equipments is an upgraded concrete compression testing machine with an imported DC motor for greater durability and lower noise, featuring a direct-MPa analogue load gauge for straightforward operation.
How It Works
Concrete cube or cylinder specimens are loaded between the machine's platens, driven by the imported DC motor for smoother, quieter, more energy-efficient operation than older AC-motor designs. The analogue load gauge reads directly in MPa alongside the applied force, giving a simple, direct readout without digital electronics, while a piston travel switch and fully covered safety enclosure protect the operator during testing.
Technical Specifications
| Parameter | Specification |
|---|---|
| Capacity | 2000 kN x 5 kN/div. |
| Max. Vertical Clearance | 415 mm |
| Max. Horizontal Clearance | 270 mm |
| Compression Platen Diameter | 295 mm |
| Piston Ram Diameter | 250 mm |
| Piston Ram Travel | 50 mm |
| Column Diameter | 66.5 mm |
| Accuracy | Class 2 |
| Product Dimension (L x W x H) | 965 x 610 x 1300 mm |
| Approx. Product Weight | 782.5 kg |
| Power | 220 V, 2.5 A, 50/60 Hz, 1 ph |
Applications
This machine is used for compressive strength testing of concrete cubes and cylinders to ASTM C39 / IS 516 / EN 12390-4, its analogue direct-MPa gauge suited to laboratories preferring straightforward mechanical readouts over digital touch-screen controls.
Related Products & Category
Part of Tvet Equipments' Concrete Testing Equipments range, an analogue alternative to the Digimatic Compression Machine 2000kN.
Frequently Asked Questions
Q1. What standard governs concrete compression testing on this machine?
ASTM C39, IS 516 and EN 12390-4 all specify compressive strength testing of concrete specimens within this machine's 2000 kN capacity.
Q2. How does the analogue gauge differ from a digital readout?
The analogue load gauge reads force directly in MPa via a mechanical dial rather than a digital touch screen, offering a simpler, more straightforward operating experience.
Q3. What accuracy class does this machine offer?
Class 2 accuracy, suited to routine quality-control compression testing.
