Universal Extruder 28 kg Manufacturer,Supplier and Exporter in India
Product Code : TVT-STE-10587

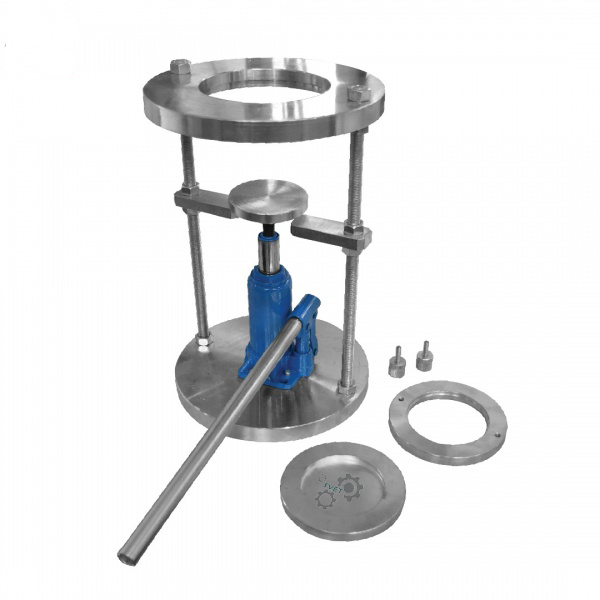

The Universal Extruder (28 kg) is a hydraulic ram-based accessory that allows Marshall, CBR and Proctor soil samples to be removed cleanly and easily from their moulds after compaction.
How It Works
The compacted mould is positioned over the extruder chamber and a hydraulic ram is advanced to push the compacted specimen out of the mould in a single, controlled stroke, avoiding the specimen disturbance that can result from manual extraction methods. The extruder accommodates the common 4 in., 6 in., 100 mm and 150 mm mould sizes used across Marshall, CBR and Proctor compaction testing.
Technical Specifications
| Parameter | Specification |
|---|---|
| Compatible Mould Sizes | 4 in., 6 in., 100 mm and 150 mm (Marshall / CBR / Proctor) |
| Dimension | Ø280 x 446 (H) mm |
| Ram Travel | 183 mm – 243 mm |
| Approx. Weight | 28 kg |
Applications
This extruder is used as a supporting accessory for specimen preparation across the Marshall compaction test (ASTM D6926/D6927), the CBR test (ASTM D1883 / IS 2720 Part 16) and Proctor compaction testing (ASTM D698/D1557 / IS 2720 Parts 7 & 8), ensuring compacted specimens are removed from their moulds without damage before further testing or curing.
Related Products & Category
This machine is part of the Soil Testing Equipment range at Tvet Equipments. Related machines include: Universal Extruder 38 kg, Advance CBR Loading Tester 50kN.
Frequently Asked Questions
Which mould sizes fit this extruder?
It accommodates 4 in., 6 in., 100 mm and 150 mm diameter Marshall, CBR and Proctor moulds.
Why use a hydraulic extruder instead of manual extraction?
A hydraulic ram gives a controlled, even push that reduces the risk of disturbing or damaging the compacted specimen compared with manual extraction methods.
How does the 28 kg model differ from the 38 kg model?
Both serve the same mould range; the 38 kg model has a larger frame and different ram travel to suit particular site or laboratory handling preferences.
