Plate Bearing Equipment Manufacturer,Supplier and Exporter in India
Product Code : TVT-STE-10560

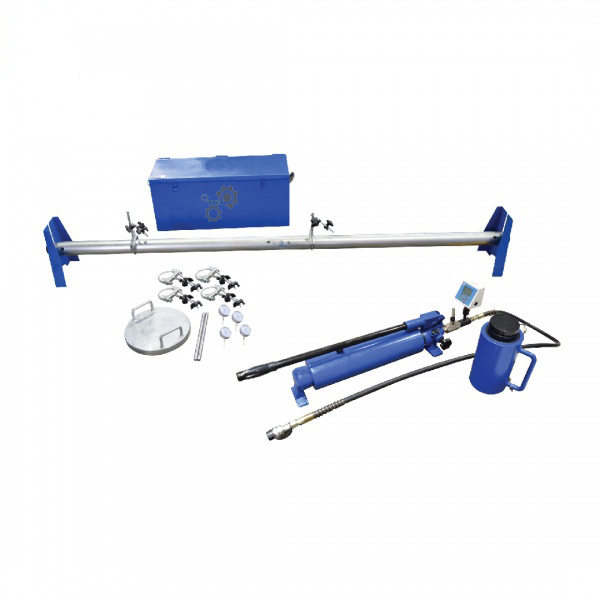

Plate Bearing Equipment is used to estimate the bearing capacity of soil under actual field loading conditions, giving engineers a direct, in-situ measure of load-settlement behaviour for foundation and pavement design.
How It Works
A rigid steel bearing plate is seated on the prepared soil surface (or at foundation/formation level in a test pit) and loaded incrementally through a reaction system, typically anchored trucks, kentledge or a reaction beam. Settlement of the plate is measured against each load increment using dial gauges until the required maximum test pressure or settlement criterion is reached, producing a load-settlement curve from which the modulus of subgrade reaction and safe bearing capacity are derived.
Technical Specifications
| Parameter | Specification |
|---|---|
| Test Type | Plate Load / Plate Bearing Test |
| Capacity | 500 kN (50 Tons) |
| Approx. Weight | 105 kg |
Applications
Plate Bearing Equipment is used for in-situ evaluation of soil bearing capacity and subgrade modulus for foundations, embankments, highways and airfield pavements, governed by IS 1888: Method of Load Test on Soils and ASTM D1196/D1196M: Standard Test Method for Nonrepetitive Static Plate Load Tests of Soils and Flexible Pavement Components. Results feed directly into foundation design and pavement subgrade evaluation carried out alongside CBR testing.
Related Products & Category
This machine is part of the Soil Testing Equipment range at Tvet Equipments. Related machines include: California Bearing Ratio, Advance CBR Loading Tester 50kN.
Frequently Asked Questions
What does the Plate Bearing Test measure?
It measures the load-settlement behaviour of soil under a rigid plate to derive the safe bearing capacity and modulus of subgrade reaction at the test location.
Which standards govern the plate load test?
IS 1888 in India and ASTM D1196/D1196M internationally govern the static plate load test procedure and reaction/loading arrangement.
How is the 500 kN capacity used in field testing?
The 500 kN (50 ton) reaction capacity allows the equipment to load large-diameter plates to the pressures required for foundation and pavement subgrade evaluation without exceeding the safe working load of the system.
