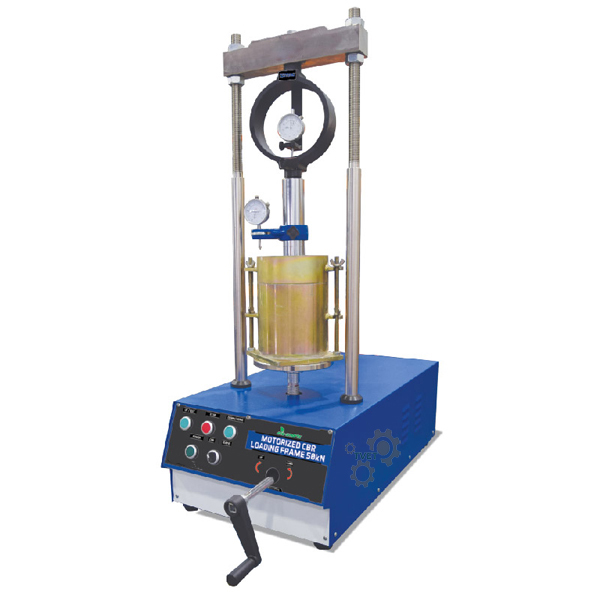

Advance CBR Loading Tester 50kN Manufacturer,Supplier and Exporter in India
Product Code : TVT-STE-10543
The Advance CBR Loading Tester 50kN is a newly redesigned, bench-mounting California Bearing Ratio (CBR) loading machine with a rigid, compact frame and a DC motorised drive system for more reliable, highly accurate test results than earlier models.
How It Works
A compacted soil specimen in its CBR mould is loaded onto the machine's platen; the DC-motor-driven ram advances a standard penetration piston into the soil at a controlled rate, while load and penetration are recorded to derive the California Bearing Ratio. The DC power motor reduces vibration and noise during testing compared with older drive designs, and rapid platen adjustment speeds up specimen changeovers between tests.
Technical Specifications
| Parameter | Specification |
|---|---|
| Capacity | 50 kN |
| Vertical Clearance | 730 mm |
| Horizontal Clearance | 270 mm |
| Product Dimension | 800(L) x 410(W) x 1200(H) mm |
| Packing Dimension | 900(L) x 545(W) x 1400(H) mm |
| Approx. Product Weight | 85 kg |
| Approx. Packing Weight | 112 kg |
| Power | 115-230V, 50/60Hz, 1Hp, 370W |
Applications
Used to determine the California Bearing Ratio of compacted soil and pavement subgrade/subbase materials per ASTM D1883 and IS 2720 Part 16, a key design input for flexible pavement thickness design in road and airfield construction.
Related Products & Category
This machine is part of the Soil Testing Equipment range at Tvet Equipments. Related machines include: Auto CBR Tester, Automatic Proctor / CBR Soil Compactor.
Frequently Asked Questions
What does the CBR test measure?
It measures the resistance of a compacted soil sample to penetration, expressed as a ratio against a standard crushed-stone material, used to design pavement layer thicknesses.
What is the maximum test capacity?
50kN.
How does this differ from the Auto CBR Tester?
This model uses a DC motorised drive system with a bench-mounting compact design; the Auto CBR Tester uses a servo-drive system with a touch-screen controller and real-time graphing.
