Touch Screen Compression Machine 3000kN Manufacturer,Supplier and Exporter in India
Product Code : TVT-CTE-10430

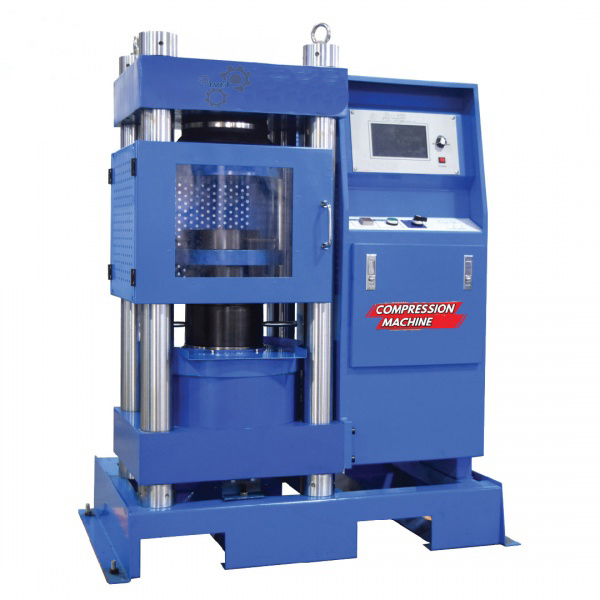

The Touch Screen Compression Machine 3000kN from Tvet Equipments is a heavy-duty, dual-range concrete compression and flexural testing machine featuring an imported DC motor drive, fully enclosed safety guarding, and an upgraded touch-screen Smartz Controller for high-throughput concrete laboratories.
How It Works
Concrete cube or cylinder specimens are loaded between the machine's platens, driven by an imported DC motor offering greater durability, lower noise and lower power consumption than older AC-motor designs. The Touch Screen Smartz Controller V1.1 displays load in real time on a 155 x 85 mm LCD screen with a real-time speed indicator bar, supports both manual and conditional automatic loading, and auto-converts results from kN to MPa according to the selected sample type. Results auto-save for up to 450 specimens and can be exported via USB, with a maximum-force-hold facility and real-time force-versus-time graph for detailed analysis.
Technical Specifications
| Parameter | Specification |
|---|---|
| Capacity | 3000 kN |
| Low Range Sensitivity | 0-999 x 0.1 kN |
| High Range Sensitivity | 1000-3000 x 1 kN |
| Max. Vertical Clearance | 370 mm |
| Max. Horizontal Clearance | 320 mm |
| Compression Platen Diameter | 295 mm |
| Piston Ram Diameter | 290 mm |
| Piston Ram Travel | 50 mm |
| Column Diameter | 73 mm |
| Accuracy | Class 1 |
| Product Dimension (L x W x H) | 1020 x 650 x 1300 mm |
| Approx. Product Weight | 905 kg |
| Power | 240 V, 750 W, 5 A, 50/60 Hz, 1 ph |
Applications
This machine is used for compressive and flexural strength testing of concrete cubes, cylinders and beams to ASTM C39 / IS 516 / EN 12390-4, its 3000 kN capacity and dual sensitivity ranges suiting laboratories testing a wide range of concrete grades from standard to high-strength mixes.
Related Products & Category
Part of Tvet Equipments' Concrete Testing Equipments range, complementing the Digimatic Compression Machine 2000kN.
Frequently Asked Questions
Q1. What standard governs concrete compression testing on this machine?
ASTM C39, IS 516 and EN 12390-4 all specify compressive strength testing procedures for concrete specimens within this machine's 3000 kN capacity.
Q2. What is new in this upgraded model?
The upgraded model replaces the older AC motor with an imported DC motor for greater durability and lower noise, adds a fully enclosed safety guard, a USB export port, and an extended base frame for more comfortable operation.
Q3. Can it test both compression and flexural specimens?
Yes, it features dual channels ready for both compression and flexural testing, with automatic kN-to-MPa conversion based on the selected sample type.
Request a Quote
Contact Tvet Equipments for pricing and specifications on the Touch Screen Compression Machine 3000kN and our full range of concrete compression testing machines. Request a quote today.
