Touch Screen Compression Machine 2000kN Manufacturer,Supplier and Exporter in India
Product Code : TVT-CTE-10439
The Touch Screen Compression Machine 2000kN from Tvet Equipments is an upgraded, dual-range concrete compression and flexural testing machine featuring an imported DC motor, dual test channels, and a touch-screen digital controller with USB result export.
How It Works
Concrete specimens are loaded between the machine's platens, driven by the imported DC motor for durability, low noise and energy efficiency. The touch-screen controller displays force across dual sensitivity ranges, auto-saves results for up to 450 specimens, and supports both compression and flexural test channels, with results exportable via USB. A piston travel switch and fully enclosed safety guard, along with an extended base frame, support safe, comfortable operation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Capacity | 2000 kN |
| Low Range Sensitivity | 0-999 x 0.1 kN |
| High Range Sensitivity | 1000-2000 x 1 kN |
| Max. Vertical Clearance | 425 mm |
| Max. Horizontal Clearance | 270 mm |
| Compression Platen Diameter | 295 mm |
| Piston Ram Diameter | 250 mm |
| Piston Ram Travel | 50 mm |
| Column Diameter | Ø70 mm |
| Accuracy | Class 1 |
| Product Dimension (L x W x H) | 970 x 610 x 1300 mm |
| Approx. Product Weight | 783 kg |
| Power | 220 V, 2.5 A, 50/60 Hz, 1 ph |
Applications
This machine is used for compressive and flexural strength testing of concrete specimens to ASTM C39 / ASTM C293 / IS 516 / EN 12390-4, its dual channels and touch-screen control suited to laboratories running both test types on one automated platform.
Related Products & Category

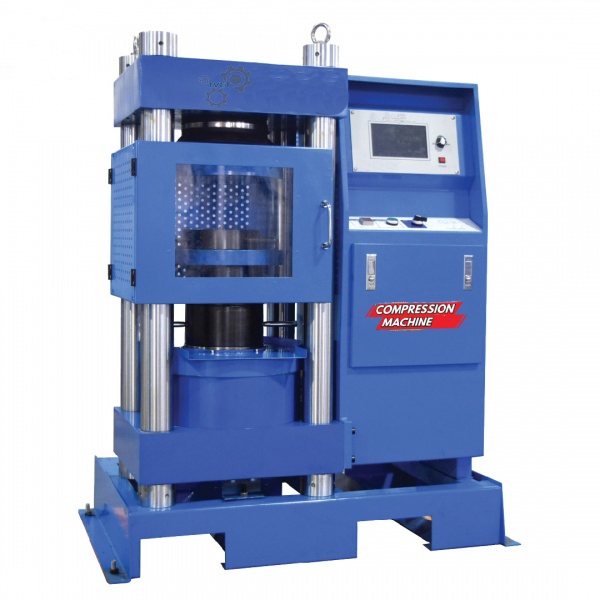

Part of Tvet Equipments' Concrete Testing Equipments range, alongside the Analogue Compression Machine 2000kN and Touch Screen Compression Machine 3000kN.
Frequently Asked Questions
Q1. What standard governs testing on this machine?
ASTM C39, ASTM C293, IS 516 and EN 12390-4 all specify compressive and flexural strength testing procedures within this machine's 2000 kN capacity.
Q2. What accuracy class does this machine offer?
Class 1 accuracy, an improvement over the Class 2 rating of the Analogue Compression Machine 2000kN.
Q3. Can results be exported for record-keeping?
Yes, results auto-save for up to 450 specimens and can be exported via USB port.
Request a Quote
Contact Tvet Equipments for pricing and specifications on the Touch Screen Compression Machine 2000kN and our full range of concrete testing machines. Request a quote today.
