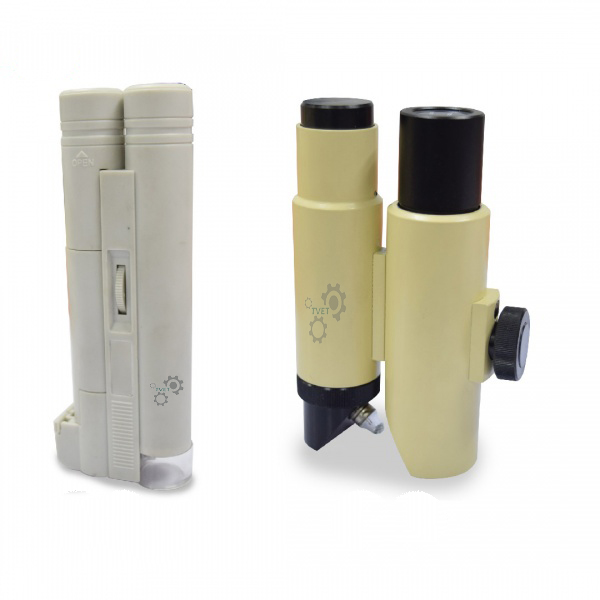

Crack Detection Microscope Meter Manufacturer,Supplier and Exporter in India
Product Code : TVT-CTE-10506
The Crack Detection Microscope Meter is a compact, battery-powered illuminated microscope for measuring crack width in concrete and other materials, supplied in a convenient carrying case in two magnification variants.
How It Works
The operator places the microscope's illuminated scale directly over the crack; an adjustable battery-powered light source keeps the graduated scale well lit under all working conditions, letting the user read the crack width directly off the scale at the stated magnification and division size.
Technical Specifications
| Parameter | Specification |
|---|---|
| Magnification | 35 Times / 40 Times |
| Scale | 4mm x 0.02mm per division (35x) / 4mm x 0.05mm per division (40x) |
| Dimension | 40(L) x 90(W) x 150(H)mm case (35x) / 150 x 50 x 30mm (40x) |
| Approx. Weight | 600g (35x) / 200g (40x) |
Applications
Used for on-site and laboratory measurement of crack widths in concrete and other construction materials, supporting condition assessment surveys that reference crack-width control criteria set out in codes such as IS 456 and ACI 224R.
Related Products & Category
This machine is part of the Concrete Testing Equipments range at Tvet Equipments. Related machines include: Concrete Testing Equipments, Digimatic Concrete Impermeability Apparatus.
Frequently Asked Questions
What is the difference between the 35x and 40x variants?
The 35x variant reads in 0.02mm divisions with a larger carrying case (600g), while the 40x variant reads in coarser 0.05mm divisions in a smaller, lighter housing (200g) — buyers should match the variant to the required reading precision.
Can this be used on materials other than concrete?
Yes, it is described as suitable for measuring crack width in concrete and other materials.
How is the scale kept readable in poor lighting?
An adjustable, battery-powered light source illuminates the scale, keeping it well lit under all working conditions.
