Semi Automatic Ring & Ball Softening Point Apparatus Manufacturer,Supplier and Exporter in India
Product Code : TVT-BATE-10352

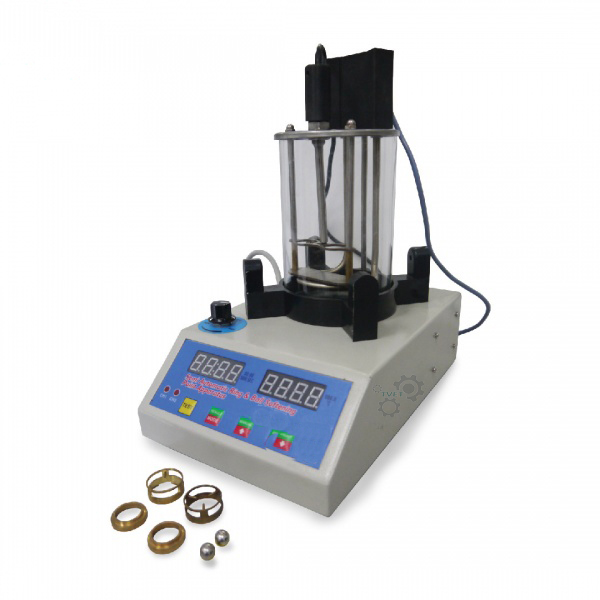

The Semi Automatic Ring & Ball Softening Point Apparatus from Tvet Equipments determines the softening point of bituminous materials with a windowed digital display of temperature and timing, operated with a simple push-button function for straightforward, repeatable testing.
How It Works
Bitumen-filled rings sit on a support plate above steel balls in a bath of water or glycerol, heated at a controlled linear rate by a PID-controlled heating element while an adjustable-speed magnetic stirrer keeps the bath temperature uniform. As each ball's supporting bitumen disc softens and the ball drops through it, the instrument's high-quality temperature probe logs the bath temperature at that moment as the softening point, with real-time display of both temperature and elapsed time and automatic display of the average result.
Technical Specifications
| Parameter | Specification |
|---|---|
| Temperature Range | 0-90 °C |
| Testing Range | 5 °C to 90 °C |
| Temperature Increase Rate | (5 ± 0.5) °C/min |
| Dropping Distance | 25.4 mm |
| Product Footprint | 280 (L) x 180 (W) mm |
Applications
The Semi Automatic Ring & Ball Softening Point Apparatus is used to determine the softening point of bitumen under ASTM D36 / IS 1205, the standard test methods for softening point of bitumen using the ring-and-ball apparatus, in asphalt binder QC laboratories, road construction testing facilities, and civil engineering institutions.
Related Products & Category
Part of Tvet Equipments' Bitumen Asphalt Testing Equipment range, offered alongside the Automatic Ring & Ball Softening Point Apparatus for laboratories wanting fully automatic laser-sensed ball-drop detection.
Frequently Asked Questions
Q1. Why is the 25.4 mm dropping distance specified?
ASTM D36 and IS 1205 both specify a fixed 25.4 mm (1 inch) drop distance beneath the ring, standardising the point at which the ball's fall is recorded as the softening point.
Q2. What heating rate does the bath use?
A PID-controlled heater raises the bath temperature at a linear rate of 5 ± 0.5 °C per minute, as required by the standard test procedure.
Q3. Can it test in both water and glycerol baths?
Yes, the apparatus is applicable for both water (for lower softening points) and glycerol (for higher softening points) test liquids.
Request a Quote
For pricing, lead times, or technical specifications on the Semi Automatic Ring & Ball Softening Point Apparatus, contact Tvet Equipments for an indicative quote.
