Portable Slump Cone Apparatus Manufacturer,Supplier and Exporter in India
Product Code : TVT-CTE-10474

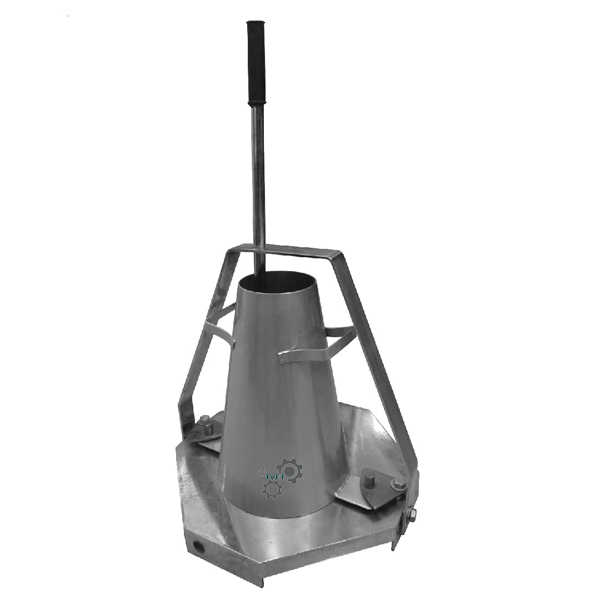

The Portable Slump Cone Apparatus is a chrome-plated, corrosion-resistant slump cone set built onto its own base-plate frame, giving a more convenient, self-contained field version of the standard slump test for concrete mixes of medium and high workability.
How It Works
The cone (100mm top diameter, 200mm base diameter, 300mm height) is fitted to an integrated base plate and frame, allowing the mould to be filled, rodded in three layers, struck off, and lifted vertically away with the base plate holding position steady, without needing a separate flat surface to be levelled and set up each time. The concrete's slump — the vertical settlement after mould removal — is then measured in the usual way to assess consistency and workability.
Technical Specifications
| Parameter | Specification |
|---|---|
| Cone Geometry | 100 mm top diameter x 200 mm base diameter x 300 mm height |
| Material | Sheet steel, chrome-plated for corrosion resistance |
| Overall Dimension | 380 (L) x 410 (W) x 640 (H) mm |
| Approx. Weight | 8 kg |
Applications
Used to determine the consistency and workability of medium- and high-workability concrete mixes per ASTM C143, IS 1199, and EN 12350-2, with the integrated frame making it a convenient choice for repeated site testing.
Related Products & Category
This machine is part of the Concrete Testing Equipments range at Tvet Equipments. Related machines include: Slump Cone Test Apparatus, Kelly Ball Apparatus.
Frequently Asked Questions
What workability range is this apparatus suited to?
Tvet Equipments describes it as suited to concrete mixes of medium and high workability, consistent with the general applicability range of the standard slump test.
What is the cone geometry used?
The standard 100mm top diameter x 200mm base diameter x 300mm height cone specified in ASTM C143/IS 1199.
Why is this version called "portable"?
It is built onto an integrated base-plate frame, making it faster and more convenient to set up and use repeatedly on site compared with a bare cone-and-tamping-rod set.
