Flexural Testing Machine Manufacturer,Supplier and Exporter in India
Product Code : TVT-CTE-10526

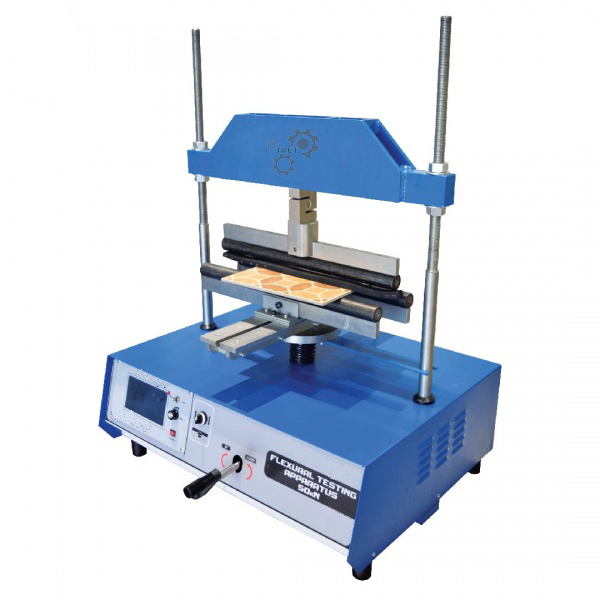

The Flexural Testing Machine is a bench-top, digitally controlled 50kN machine for flexural, breaking and compression strength testing, using two lower rounded metal bearers spaced at the specimen's span and a single rounded upper bearer positioned centrally between them.
How It Works
The specimen rests across two lower bearers while a single upper bearer, positioned centrally, applies load through a DC motor; the machine can run under load control or displacement control, using suitable accessories, up to its full capacity. A digital graphics data-acquisition and control system records the test in real time, with the upper cross head adjustable to set the vertical test space for different specimen sizes.
Technical Specifications
| Parameter | Specification |
|---|---|
| Max. Capacity | 50 kN x 0.01kN sensitivity (50kN load cell) |
| Max. Vertical Test Space | 300mm(H) x 550mm(W) |
| Load Rate | 0.02 – 2 kN/s (depending on specimen stiffness) |
| Memory Storage | 550 test results |
| Dimensions | 830(L) x 663(W) x 1135(H) mm |
| Power | 240V, 0.37kW, 3A, 50/60Hz, 1Ph |
| Approx. Weight | 225 kg |
Applications
Used for flexural, breaking, and compression strength testing of concrete and similar specimens per ASTM C78/ASTM C293, IS 516 and EN 12390-5, offering compact bench-top testing with digital load/displacement control and stored test-result memory, complementing the range's higher-capacity hydraulic flexural frames.
Related Products & Category
This machine is part of the Concrete Testing Equipments range at Tvet Equipments. Related machines include: 100kN Hydraulic Flexural Frame, Flexural Machine.
Frequently Asked Questions
What is the capacity of this Flexural Testing Machine?
50kN, read to 0.01kN sensitivity via the fitted load cell.
How does this differ from the 100kN Hydraulic Flexural Frame?
This is a compact, digitally controlled bench-top unit with load/displacement control and 550-result memory storage, suited to smaller specimens, while the 100kN Hydraulic Flexural Frame is a higher-capacity attachment powered by a separate compression machine.
Can this machine run displacement-controlled tests?
Yes — tests can be performed under either load control or displacement control, using suitable accessories, up to the machine\u2019s capacity.
