Electrical Drum Mixer Manufacturer,Supplier and Exporter in India
Product Code : TVT-CTE-10502

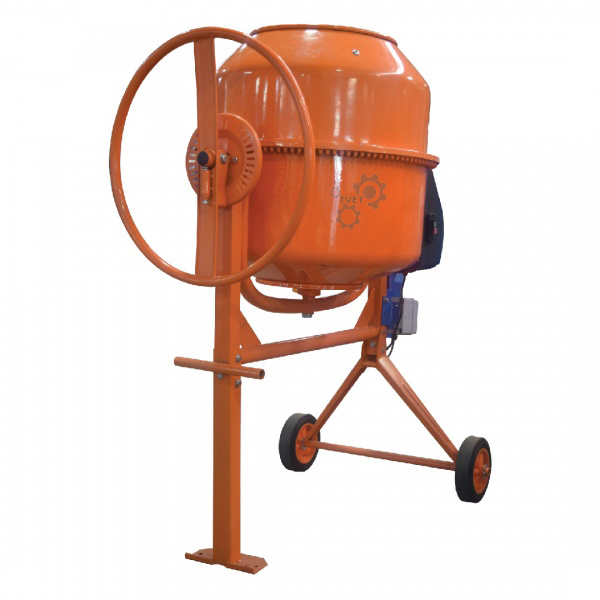

The Electrical Drum Mixer is a vibration-dampened, telescopic-leg concrete mixer built for field mixing of low- to medium-strength concrete, available in 120-litre and 200-litre drum capacities.
How It Works
Concrete constituents are loaded into the rotating drum, which is driven by an electric motor at a controlled rotation speed; a device for absorbing vibrations reduces motor-induced vibration for quieter, longer-lasting operation, while telescopic legs provide stable footing and a steering system with reinforced tow bar allows the mixer to be moved safely between sites.
Technical Specifications
| Parameter | Specification |
|---|---|
| Drum Capacity | 120 L / 200 L |
| Max. Mixing Capacity | 96 L / 160 L |
| Drum Rotation Speed | 28 – 34 RPM (both variants) |
| Power | 240V, 50/60Hz, 650W, 1Ph (120L) / 240V, 50/60Hz, 1000W, 1Ph (200L) |
| Dimension | 1080 (L) x 680 (W) x 1150 (H) mm (120L) / 1200 (L) x 680 (W) x 1400 (H) mm (200L) |
| Net Weight | 52 kg (120L) / 56 kg (200L) |
| Gross Weight | 68.5 kg (120L) / 72.5 kg (200L) |
Applications
Used for field batching of low- to medium-strength concrete for site trials and specimen preparation, consistent with the batch-type mixer requirements of IS 1791 and the specimen-making practices of ASTM C192/IS 516.
Related Products & Category
This machine is part of the Concrete Testing Equipments range at Tvet Equipments. Related machines include: Concrete Pan Type Mixer (Forced Speed), Vibrating Table.
Frequently Asked Questions
What is the difference between the 120L and 200L variants?
Both share the same drum rotation speed and vibration-dampening/telescopic-leg design; the 200L variant has a larger drum and mixing capacity, a more powerful 1000W motor, larger dimensions, and higher weight than the 120L variant.
What type of concrete is this mixer suitable for?
It is suitable for field mixes of low- to medium-strength concrete.
Is the mixer easy to move between locations on site?
Yes — telescopic legs provide stability while stationary, and a steering system with reinforced tow bar allows safe, easy movement between mixing locations.
Request a Quote
Looking to buy or get pricing for this machine? Request a quote from Tvet Equipments and our team will get back to you with indicative pricing and lead times.
