Dynamic Cone Penetrometer Manufacturer,Supplier and Exporter in India
Product Code : TVT-STE-10578

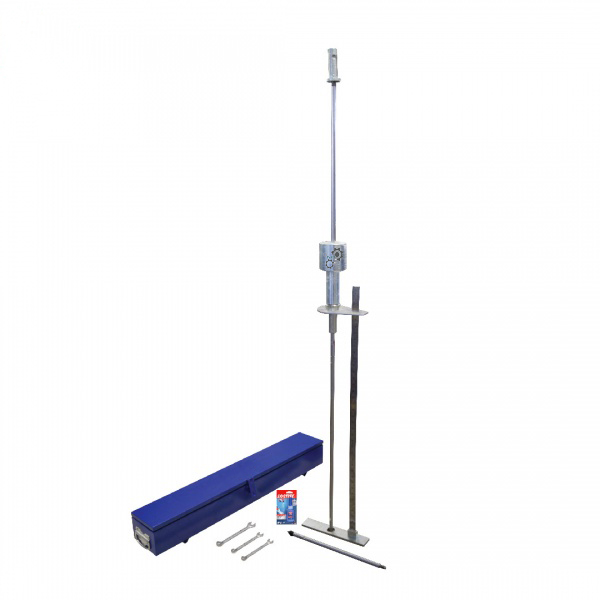

The Dynamic Cone Penetrometer (DCP) is used to measure the in-situ structural properties of existing road pavements constructed with unbound materials, giving a rapid, continuous profile of layer strength with depth.
How It Works
A cone-tipped rod is driven into the pavement or subgrade by repeated blows from a sliding drop hammer of standard mass and drop height, and the penetration per blow is recorded against depth. Where pavement layers have different strengths, the boundaries between them can be identified from changes in the penetration rate, and the thickness of each layer determined. Continuous measurements can be taken down to a depth of approximately 850 mm, or to a recommended maximum of 2 m when extension shafts are fitted.
Technical Specifications
| Parameter | Specification |
|---|---|
| Standard Depth Range | Up to approx. 850 mm (continuous) |
| Maximum Depth (with extension shafts) | Up to 2 m (recommended maximum) |
| Dimension | 1060 (L) x 170 (W) x 140 (H) mm |
| Approx. Weight | 26 kg |
Applications
The DCP test is used for rapid pavement evaluation and subgrade/unbound-layer strength profiling, governed internationally by ASTM D6951/D6951M: Standard Test Method for Use of the Dynamic Cone Penetrometer in Shallow Pavement Applications, with the underlying dynamic cone penetration principle for soils covered in India by IS 4968 (Part 1): Method for Subsurface Sounding for Soils – Dynamic Method Using 50 mm Cone Without Bentonite Slurry. It is widely used by highway and pavement engineers to assess existing road structural condition ahead of rehabilitation or overlay design, without the cost and disruption of full excavation.
Related Products & Category
This machine is part of the Soil Testing Equipment range at Tvet Equipments. Related machines include: Advance Automatic Digital Cone Penetrometer, Field CBR Test Set 78 kg.
Frequently Asked Questions
What does the Dynamic Cone Penetrometer measure?
It measures the penetration resistance of pavement and subgrade layers with depth, from which layer strength and boundaries can be identified.
How deep can the DCP test go?
Continuous measurements can be made to approximately 850 mm, or up to a recommended maximum of 2 m when extension shafts are used.
Which standard governs the DCP test?
ASTM D6951/D6951M governs the test internationally for shallow pavement applications, with IS 4968 (Part 1) covering the related dynamic cone penetration method for soils in India.
