Digital Pull Out Tester Manufacturer,Supplier and Exporter in India
Product Code : TVT-CTE-10487

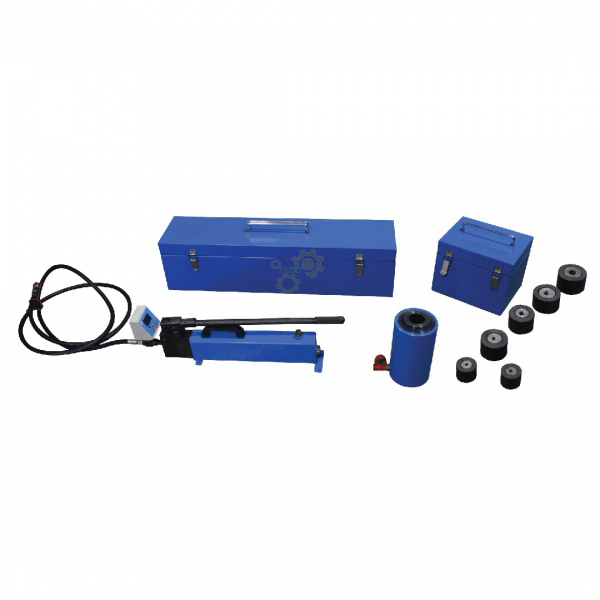

The Digital Pull Out Tester determines the bond strength between anchored reinforcing steel bar (rebar) and concrete, and checks anchorage performance in-situ, reading load on a digital gauge and covering rebar diameters up to 32mm across a range of hydraulic jack capacities.
How It Works
A hand pump drives the hydraulic jack (single-acting on lower-capacity units, double-acting on higher-capacity units) to apply a steadily increasing pull-out force to the anchored rebar through a matched specimen wedge and puller rod, while the digital load gauge displays the applied force. The unit is supplied with a set of specimen wedges sized to different rebar diameters, so the same jack can test anchorage bars of different sizes made from high-strength steel.
Technical Specifications
| Parameter | Specification |
|---|---|
| 100 kN capacity | Ø6-Ø20mm wedge range, M18 puller rod, M6-20 threaded wedges, 27mm plunger travel, 5.5kg cylinder weight, single-acting pump, 0.01kN resolution |
| 200 kN capacity | Ø6-Ø25mm wedge range, M24 puller rod, M6-24 threaded wedges, 35mm plunger travel, 13kg cylinder weight |
| 300 kN capacity | Ø6-Ø32mm wedge range, M30 puller rod, M6-30 threaded wedges, 45mm plunger travel, 15kg cylinder weight |
| 500 kN capacity | Ø6-Ø40mm wedge range, M39 puller rod, M6-36 threaded wedges, 60mm plunger travel, 25kg cylinder weight, double-acting pump |
| 1000 kN capacity | wedge range up to Ø40mm, M45 puller rod, M6-39 threaded wedges, 85mm plunger travel, 58kg cylinder weight |
| Note | Tvet Equipments\u2019 own product description mentions a "30 tons" hydraulic jack capacity and states the unit is suitable up to 32mm rebar samples with six specimen wedges (12/14/16/20/25/32mm) — this appears to describe the 300kN capacity variant specifically (which lists a Ø6-Ø32mm wedge range), though "30 tons" does not exactly match 300kN (which is closer to 30.5 metric tons); confirm the exact capacity and wedge set with Tvet Equipments for the specific unit you need. |
Applications
Used to determine rebar-to-concrete bond/anchorage strength and check in-situ anchorage performance per ASTM A944 and related pull-out test methodology, across capacities from 100kN to 1000kN to suit different rebar diameters and anchor types.
