Pull Out Test Apparatus Manufacturer,Supplier and Exporter in India
Product Code : TVT-CTE-10486

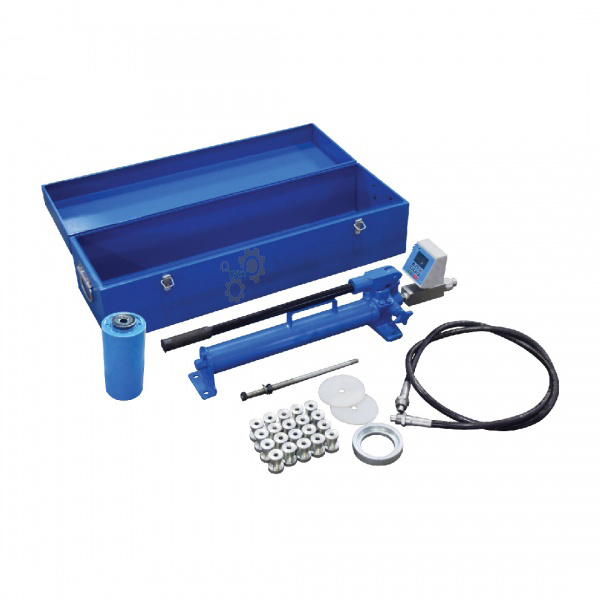

The Pull Out Test Apparatus evaluates in-situ concrete strength by measuring the force needed to extract a pre-installed insert from hardened concrete, using a hand-operated hydraulic pump for load application, up to 100 kN (10 tons) capacity.
How It Works
An insert (cast in, or post-installed into a drilled hole) is engaged by a bearing ring, which locates via a keyhole slot for quick, secure linkage. The hand-operated hydraulic pump then applies a steadily increasing pull-out force to the insert, resisted by a cone of concrete around it; a precise loading system minimises hydraulic backlash for smoother, more repeatable operation. An integral movement indicator identifies the point of "first movement" as well as total displacement before the insert pulls out, and the peak load reached correlates with the in-situ compressive strength of the surrounding concrete.
Technical Specifications
| Parameter | Specification |
|---|---|
| Capacity | 100 kN (10 tons) |
| Case Dimension | 800 (L) x 200 (W) x 230 (H) mm |
| Approx. Weight | 22 kg |
Applications
Used to evaluate the in-situ compressive strength of hardened concrete per ASTM C900, BS 1881-207, and EN 12504-3, giving a non-destructive-to-moderate-damage alternative to core extraction for assessing concrete strength in an existing structure.
Related Products & Category
This machine is part of the Concrete Testing Equipments range at Tvet Equipments. Related machines include: Digital Pull Out Tester, Pull Out Tester 50kN.
Frequently Asked Questions
What does the pull-out test actually measure?
The force needed to extract an insert (cast in or post-installed) from hardened concrete, which correlates with the in-situ compressive strength of the surrounding concrete, per ASTM C900/BS 1881-207/EN 12504-3.
What is "first movement" and why does it matter?
It is the point at which the insert first begins to move under load, identified by the apparatus\u2019s integral movement indicator; recording it alongside total displacement before failure gives additional insight into the concrete\u2019s behaviour under the pull-out load.
How does this differ from the Digital Pull Out Tester and Pull Out Tester 50kN?
This is a manual hydraulic-pump unit reading load via its own gauge/indicator system; the Digital Pull Out Tester and Pull Out Tester 50kN add a digital load gauge and are aimed specifically at rebar anchorage/bond-strength testing rather than general in-situ concrete strength assessment.
Request a Quote
Looking to buy or get pricing for this machine? Request a quote from Tvet Equipments and our team will get back to you with indicative pricing and lead times.
