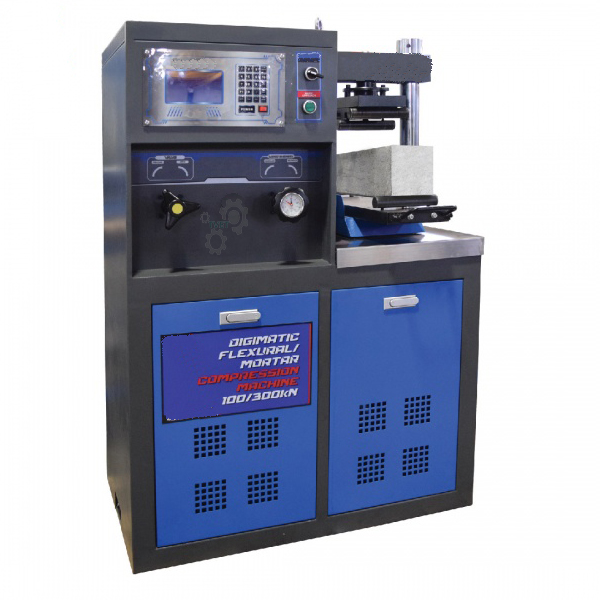

Digimatic Flexural Mortar Compression Machine 100 300 kN Manufacturer,Supplier and Exporter in India
Product Code : TVT-CTE-10465
The Digimatic Flexural Mortar Compression Machine 100/300kN is a two-prestressed-column test frame primarily built for concrete beam flexural testing, with an optional device that adapts the same frame for mortar cube compression testing, controlled by a digimatic multi-function controller.
How It Works
A pressure transducer and loading-rate control knob, together with the digimatic controller, let the operator run tests at a controlled loading speed while the console displays force in both kN and MPa. The controller shows a real-time force-vs-time graph, holds the maximum force reached, and auto-saves results for up to 450 specimens; an RS232 port supports instant result printing with a separately-ordered mini printer. A 5-element injection hydraulic pump and rapid-approach system speed up test cycle time, and the frame is rated Grade 1.0 accuracy. Fitting the optional mortar compression device converts the same frame from beam flexural testing to 50mm mortar cube compression testing.
Technical Specifications
| Parameter | Specification |
|---|---|
| Capacity & Sensitivity | 100 kN Flexural & 300 kN Compression x 0.1 kN |
| Max. Vertical Clearance | 230 mm (with compression platen) |
| Max. Horizontal Clearance | 198 mm |
| Compression Platen Diameter | Ø158 mm |
| Piston Ram Diameter & Travel | 150 mm & 50 mm |
| Approx. Dimension | 550 mm (single overall figure as listed by manufacturer; full L x W x H breakdown not given in source data) |
| Approx. Weight | 550 kg |
| Power | AC 220V, 1 Ph, 0.75 kW, 4.9 Amp, 50/60 Hz |
Applications
Used for flexural strength testing of concrete beams per ASTM C78 / C293, IS 516, and EN 12390-5, and, with the optional mortar compression device fitted, for mortar cube compressive strength testing per ASTM C109, IS 4031 Part 6, and EN 196-1.
Related Products & Category
This machine is part of the Concrete Testing Equipments range at Tvet Equipments. Related machines include: 100kN Hydraulic Flexural Frame, Flexural Machine.
Frequently Asked Questions
Can this machine test both concrete beams and mortar cubes?
Yes — it is built primarily as a 100kN concrete beam flexural frame, with an optional device available to adapt the same frame to 300kN mortar cube compression testing.
What does the digimatic controller display during a test?
Force in both kN and MPa, a real-time force-vs-time graph, and the maximum force reached, with results auto-saved for up to 450 specimens and an RS232 port for instant printing (mini printer ordered separately).
What accuracy grade does this machine offer?
Grade 1.0 accuracy.
