Sand Pouring Cylinder Set Manufacturer,Supplier and Exporter in India
Product Code : TVT-STE-10568

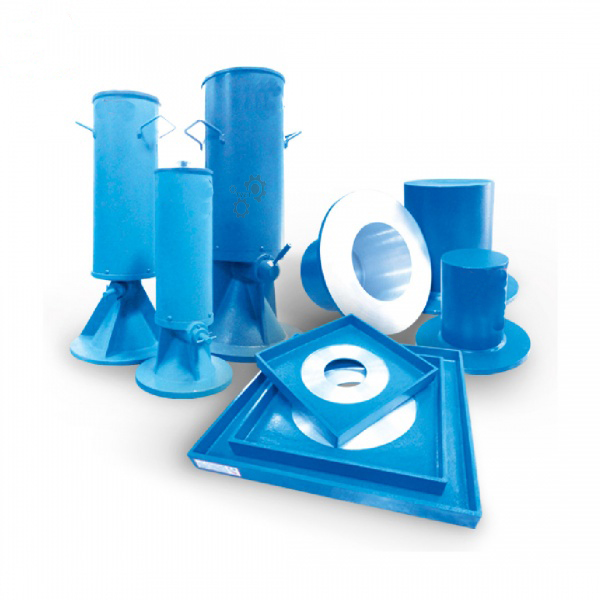

The Sand Pouring Cylinder Set is the calibrated cylinder apparatus used with the sand replacement method to determine the in-situ density of fine-grained compacted soil.
How It Works
A hole is dug into the compacted soil layer and the excavated material is collected, dried and weighed. Calibrated free-flowing sand is then poured from the sand pouring cylinder to fill the hole and a calibrating can of known volume, allowing the volume of the excavated hole — and hence the in-situ dry density of the soil — to be calculated. Tvet Equipments offers the set in three cylinder diameters to suit different site requirements.
Technical Specifications
| Parameter | Specification |
|---|---|
| Test Method | Sand replacement method |
| Available Sizes | 100 mm, 150 mm and 200 mm diameter Sand Pouring Cylinder Sets |
Applications
The Sand Pouring Cylinder Set is used for field density and compaction control of soils, subgrades and granular fill, governed by IS 2720 (Part 28): Determination of Dry Density of Soils In-Place by the Sand Replacement Method and ASTM D1556/D1556M: Standard Test Method for Density and Unit Weight of Soil in Place by the Sand-Cone Method. The larger 150 mm and 200 mm cylinders are typically used for coarser fills where a larger test hole is needed for a representative result.
Related Products & Category
This machine is part of the Soil Testing Equipment range at Tvet Equipments. Related machines include: Sand Density Cone Apparatus, Core Cutter Set.
Frequently Asked Questions
Why are three cylinder diameters offered?
Different diameters (100 mm, 150 mm, 200 mm) suit different soil gradations and test-hole sizes, with larger cylinders used for coarser fill materials that need a bigger, more representative sample volume.
What is measured using this set?
The set is used to determine the in-situ dry density of compacted soil by measuring the volume of a test hole using calibrated sand.
Which standards apply to the sand pouring cylinder method?
IS 2720 (Part 28) in India and ASTM D1556/D1556M internationally govern the sand replacement density test.
