Motorized Unconfined Compression Apparatus Manufacturer,Supplier and Exporter in India
Product Code : TVT-STE-10575

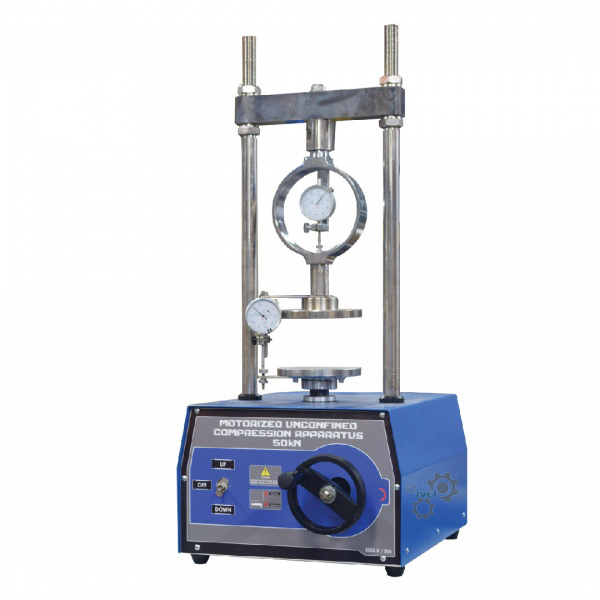

The Motorized Unconfined Compression Apparatus is a geared, motor-driven loading frame designed for unconfined compression testing of soil specimens, supplied complete with an upper platen, a calibrated proving ring and a penetration dial gauge.
How It Works
The platen is advanced through a motor-driven mechanical gear system at a selectable, precisely controlled speed, with a rapid approach feature that allows the platen to close in on the specimen quickly before switching to the test speed. Load is measured via the supplied proving ring, which is delivered with its own calibration certificate, while specimen deformation is tracked using a penetration dial gauge with 25 mm travel, reading to 0.01 mm per division, mounted on the included gauge bracket. Tvet Equipments offers this frame in three capacity variants to suit different specimen sizes and load ranges.
Technical Specifications
| Parameter | Specification |
|---|---|
| Capacity (Model 1 / 2 / 3) | 5 kN / 0.6 kN / 50 kN |
| Max. Vertical Clearance | 300 mm / 300 mm / 590 mm |
| Max. Horizontal Clearance | 140 mm / 140 mm / 220 mm |
| Speed Rate (50 Hz) | 1.0 mm/min / 2.4 mm/min / 1.0 mm/min |
| Dimension | 310 (L) x 190 (W) x 540 (H) mm / 310 (L) x 190 (W) x 540 (H) mm / 530 (L) x 375 (W) x 870 (H) mm |
| Approx. Weight | 16 kg / 16 kg / 53 kg |
| Power | 220 V, 50/60 Hz, single phase, 0.25 Hp (all models) |
| Supplied With | Upper platen, proving ring with calibration certificate, penetration dial gauge (25 mm travel x 0.01 mm/division) with gauge mounting bracket |
Applications
The apparatus is used to determine the unconfined compressive strength of cohesive soil specimens per ASTM D2166: Standard Test Method for Unconfined Compressive Strength of Cohesive Soil and IS 2720 (Part 10): Determination of Unconfined Compressive Strength. The range of capacities allows soft, low-strength soils to be tested on the lower-capacity models while stiffer specimens can be tested on the 50 kN model without exceeding the proving ring's calibrated range.
Related Products & Category
This machine is part of the Soil Testing Equipment range at Tvet Equipments. Related machines include: Universal Loading Frame, Laboratory Vane Apparatus.
Frequently Asked Questions
Why are three capacity models offered?
Different capacities (5 kN, 0.6 kN and 50 kN) suit different soil strengths and specimen sizes, so the correct proving ring range can be matched to the expected failure load.
What does the proving ring measure?
The proving ring measures the compressive load applied to the specimen and is supplied with its own calibration certificate for traceability.
Which standard governs this test?
The unconfined compression test is governed by ASTM D2166 internationally and IS 2720 (Part 10) in India.
