Laboratory Vane Apparatus Manufacturer,Supplier and Exporter in India
Product Code : TVT-STE-10554

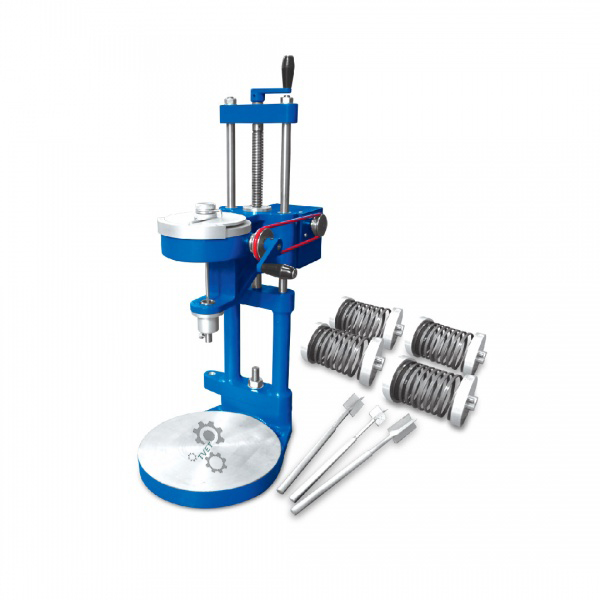

The Laboratory Vane Apparatus determines the shear strength of a soil sample confined within its sample tube, supplied with a hand-operated clutch for controlled torque application.
How It Works
A four-bladed vane is pressed into the soil sample still confined in its sampling tube; the hand-operated clutch applies a steadily increasing torque to rotate the vane at a controlled rate until the soil shears, and the maximum torque recorded is used to calculate the soil's undrained shear strength.
Technical Specifications
| Parameter | Specification |
|---|---|
| Dimension | 200(L) x 240(W) x 260(H) mm |
| Approx. Weight | 10 kg |
| Operation | Hand-operated clutch |
Applications
Used to determine the undrained shear strength of cohesive soil samples per ASTM D4648 (Standard Test Method for Laboratory Miniature Vane Shear Test for Saturated Fine-Grained Clayey Soil) and IS 2720 Part 30 (laboratory vane shear test), commonly used on undisturbed tube samples for geotechnical design.
Related Products & Category
This machine is part of the Soil Testing Equipment range at Tvet Equipments. Related machines include: Hand Auger Apparatus, Soil Testing Equipment.
Frequently Asked Questions
What does the Laboratory Vane Apparatus measure?
The undrained shear strength of a cohesive soil sample, still confined in its sample tube.
How is torque applied during the test?
Through a hand-operated clutch, which applies a steadily increasing, controlled torque to rotate the vane until the soil shears.
What type of soil sample is this test suited to?
Saturated, fine-grained clayey soil samples, typically undisturbed tube samples collected during site investigation.
