Coring Machine 18kg Manufacturer,Supplier and Exporter in India
Product Code : TVT-CTE-10456

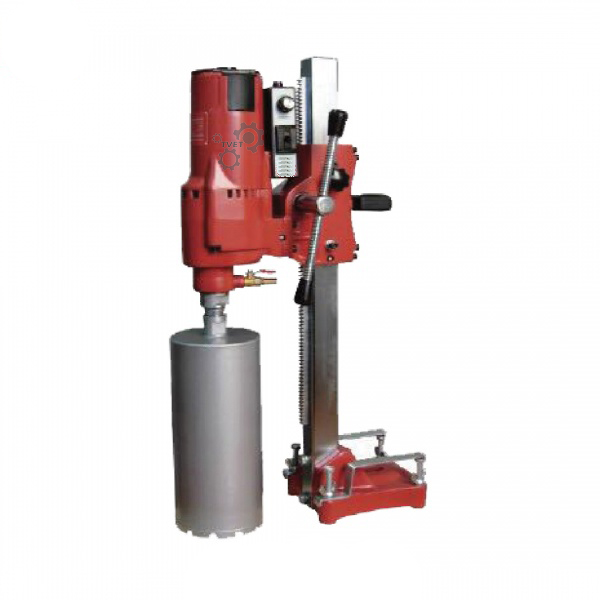

The Coring Machine 18kg is a mid-size electrical core drilling machine for laboratory and site use, cutting core samples up to 165mm diameter from concrete, rock, or other hardened material, with a waterproof switch, soft starting, safety clutch and overload protection.
How It Works
A diamond-tipped core bit is fitted to the 1 inch/3P spindle thread, and the motor's built-in water swivel supplies cooling water to the bit during drilling, with the side-guard-mounted drainage outlet carrying away the resulting water and slurry. Soft starting brings the motor up to speed gradually to reduce shock loading on the bit and drive, while the safety clutch and overload protection disengage the drive if the bit binds. Gear speed-regulation lets the operator match spindle speed to the core diameter and material being cut, and a clamp secures the workpiece with a sliding front for access to the specimen.
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Input Power | 3300 W |
| Max. Drilling Diameter | 165 mm |
| Spindle Thread | 1 inch / 3P |
| Rated Voltage | 110/220V |
| Rated Frequency | 50/60 Hz |
| No-Load Speed | 850 (0-850) |
| Weight | 18 kg |
Applications
Used to extract core samples up to 165mm diameter from hardened concrete or rock for laboratory or site testing per ASTM C42, IS 516 (Part 5), and BS EN 12504-1, offering higher power and a larger maximum core diameter than the handheld 80mm model.
Related Products & Category
This machine is part of the Concrete Testing Equipments range at Tvet Equipments. Related machines include: Hand Held Coring Machine, Coring Machine 2 in 1 Version (Heavy Duty).
Frequently Asked Questions
How does this differ from the Hand Held Coring Machine?
This 18kg model has higher rated power (3300W vs 1500W) and cuts a larger maximum core diameter (165mm vs 80mm), and adds soft starting and overload protection.
What safety features does this machine include?
A waterproof switch, soft starting, a safety clutch, and overload protection, together with a side guard around the drilling head.
What voltage does the machine run on?
It is rated for both 110V and 220V supplies at 50/60 Hz.
