5000kN Digimatic Load Cell Manufacturer,Supplier and Exporter in India
Product Code : TVT-CTE-10512

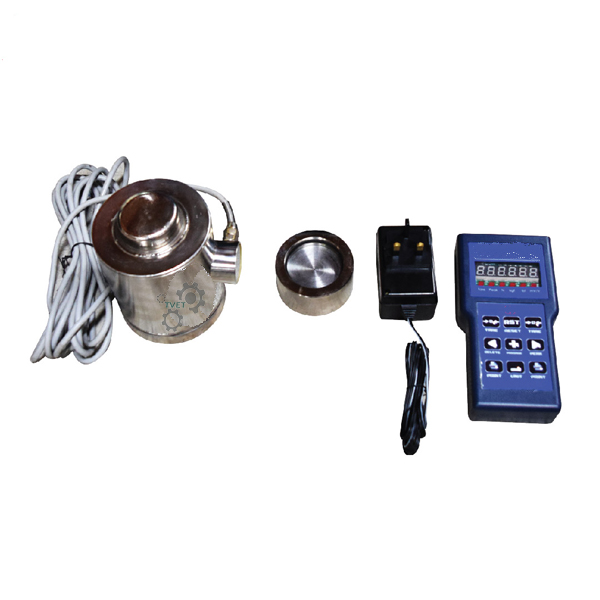

The 5000kN Digimatic Load Cell is the highest-capacity model in Tvet Equipments' load cell range, used for load and force verification/calibration of high-capacity compression testing machines.
How It Works
As load is applied through the compression testing machine under calibration, strain in the sensitive steel-block element is transmitted to an amplifier, which converts it into a digital load reading. Comparing this reading against the testing machine's own indicated load verifies the machine's force accuracy across its working range.
Technical Specifications
| Parameter | Specification |
|---|---|
| Capacity | 5000 x 0.01 kN |
| Load Cell Dimension | Ø180 x 375(H) mm |
| Working Temperature | 0 – 45°C, Moisture ? 80% RH |
| Accuracy | Class ±1% |
| Approx. Weight | 28 kg |
| Power | NiCd battery, AC adaptor as charging source |
Applications
Used for load and force verification/calibration of high-capacity compression testing machines (such as 5000kN-class machines) per ASTM E4 (Standard Practices for Force Verification of Testing Machines) and ISO 376 (calibration of force-proving instruments).
Related Products & Category
This machine is part of the Concrete Testing Equipments range at Tvet Equipments. Related machines include: Digimatic Load Cell 300kN, Automatic Compression Machine (Welded Frame) 5000kN.
Frequently Asked Questions
What is this load cell used for?
It verifies and calibrates the force accuracy of high-capacity compression testing machines, by comparing its own independent digital reading against the machine\u2019s indicated load.
What is the capacity of this load cell?
5000kN, read in 0.01kN increments — the largest capacity in Tvet Equipments\u2019 load cell range.
Is this suited to the 5000kN compression machines in your range?
Yes, its 5000kN capacity matches the range\u2019s highest-capacity compression machines, such as the Automatic Compression Machine (Welded Frame) 5000kN.
