Automatic Compression Machine (Welded Frame) 5000 kN Manufacturer,Supplier and Exporter in India
5000kN.jpg)
Product Code : TVT-CTE-10442

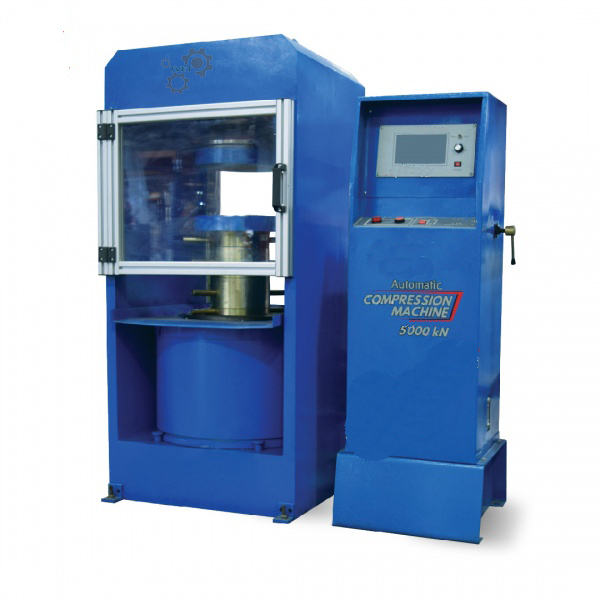

The Automatic Compression Machine (Welded Frame) 5000kN is a heavy-capacity welded-frame compression tester built around a dual-channel, independently calibrated load-measuring system, sized to cover both high-strength concrete specimens and lower-load specimens on the same frame. An optional flexural attachment lets the 5000 kN frame also be used for flexural strength testing.
How It Works
The machine uses two independently calibrated measuring channels — a high range (5000 kN x 1.0 kN sensitivity) for full-capacity concrete cube and cylinder testing, and a second, finer range (999 kN x 0.1 kg sensitivity) for lower-load specimens — so the operator does not need a second, smaller-capacity machine to get accurate readings across a wide range of specimen strengths. Load is applied hydraulically through the piston ram, and the console automatically records peak load and computed strength for each channel. When the optional flexural attachment is fitted, the same frame and console can be reconfigured to run flexural (bending) tests instead of direct compression.
Technical Specifications
| Parameter | Specification |
|---|---|
| Max. Vertical Clearance | 435 mm |
| Max. Horizontal Clearance | 580 mm |
| Capacity | 5000 kN x 1.0 kN & 999 kN x 0.1 kg Sensitivity (dual channel) |
| Compression Platen Diameter | 300 mm |
| Piston Ram Diameter | 440 mm |
| Piston Ram Travel | 50 mm |
| Accuracy Class | Class 1 |
| Frame Dimension | 750 x 660 x 1500 mm |
| Console Dimension | 620 x 500 x 1300 mm |
| Approx. Product Weight | 2800 kg |
| Approx. Packing Weight | 2950 kg |
| Power | 220V, 2.5 Amp, 50/60 Hz, 1 Ph |
Applications
The high-range channel is used for compressive strength testing of high-strength concrete cubes and cylinders per ASTM C39, IS 516, and EN 12390-4. Tvet Equipments' own product literature describes the dual-channel design as also suited to mortar cube compression testing (relevant standards: ASTM C109, IS 4031 Part 6, EN 196-1) on the lower-sensitivity channel — buyers testing mortar specimens should confirm the exact usable load range for mortar cubes with Tvet Equipments before ordering, since the published spec sheet does not state a separate minimum-capacity figure. With the optional flexural attachment, the frame supports flexural beam testing per ASTM C78 / C293, IS 516, and EN 12390-5.
Related Products & Category

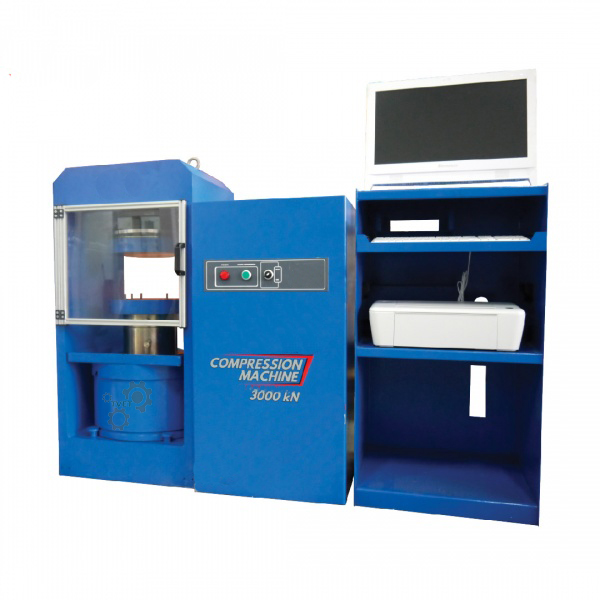

This machine is part of the Concrete Testing Equipments range at Tvet Equipments. Related machines include: Welded Frame Compression Machine 3000kN, Touch Screen Welded Frame Compression Machine 2000kN.
Frequently Asked Questions
Can this machine test both concrete and mortar specimens?
Tvet Equipments states the dual independently-calibrated channels allow both concrete and mortar specimens to be tested on one frame; confirm the exact mortar-range capacity with Tvet Equipments before ordering, as it is not separately listed on the spec sheet.
What is the maximum capacity of this machine?
5000 kN on the primary channel, with a second, finer-resolution 999 kN x 0.1 kg channel for lower-load specimens.
Can this machine run flexural tests?
Yes, with the optional flexural attachment, which reconfigures the frame from direct compression to a flexural (bending) load path per ASTM C293/EN 12390-5.
Request a Quote
Looking to buy or get pricing for this machine? Request a quote from Tvet Equipments and our team will get back to you with indicative pricing and lead times.
