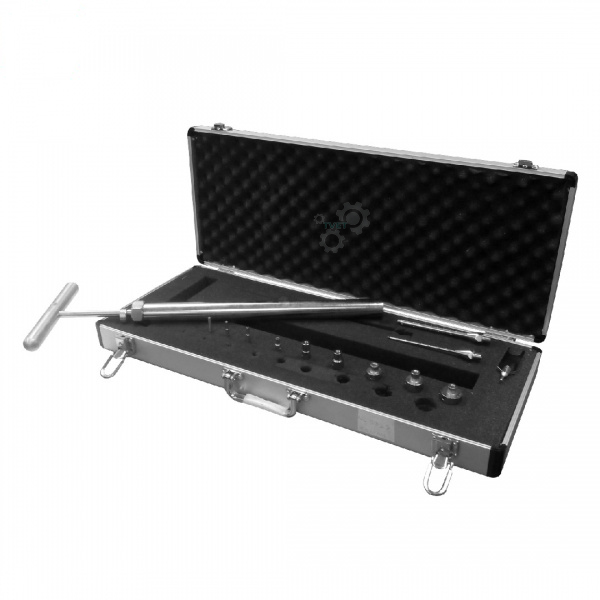

Proctor Penetrometer Apparatus Manufacturer,Supplier and Exporter in India
Product Code : TVT-STE-10579
The Proctor Penetrometer Apparatus is a portable penetration-resistance instrument used to assess the compaction and bearing condition of soil specimens compacted in a Proctor mould, giving a quick check of consistency across a compacted layer.
How It Works
A calibrated penetration probe is pushed into the surface of a Proctor-compacted soil specimen or compacted field layer at a controlled rate, and the resistance encountered is read directly from the instrument's calibrated scale. Because the reading responds to both moisture content and compactive effort, repeated readings across a compacted layer or across specimens compacted at different moisture contents give a rapid comparative picture of compaction uniformity and bearing condition.
Technical Specifications
| Parameter | Specification |
|---|---|
| Dimension | 580 (L) x 250 (W) x 55 (H) mm |
| Approx. Weight | 5 kg |
Applications
Penetration-resistance checks of this kind are used alongside standard/modified Proctor compaction testing per IS 2720 (Part 7) / IS 2720 (Part 8) and ASTM D698 / ASTM D1557, and relate to the same in-situ penetration-resistance principle used in field bearing checks per IS 2720 (Part 16) / ASTM D4429. It gives laboratory and field staff a quick, repeatable way to compare compaction consistency across specimens or layers without a full CBR test on each point.
Related Products & Category
This machine is part of the Soil Testing Equipment range at Tvet Equipments. Related machines include: Proving Ring Penetrometer, Pocket Penetrometer (Soil).
Frequently Asked Questions
What does the Proctor Penetrometer Apparatus check?
It checks the penetration resistance of a Proctor-compacted soil specimen or compacted field layer, giving a quick indication of compaction consistency.
Is this a substitute for a full CBR test?
No, it provides a rapid comparative check rather than a full CBR determination; where a design-stage CBR value is required, testing per ASTM D1883 / IS 2720 (Part 16) should be carried out.
How does it relate to Proctor compaction testing?
It is typically used on specimens already compacted using standard or modified Proctor methods, giving an additional consistency check alongside the moisture-density curve.
