Mini Slump Cone Test Apparatus Manufacturer,Supplier and Exporter in India
Product Code : TVT-CMTE-10380

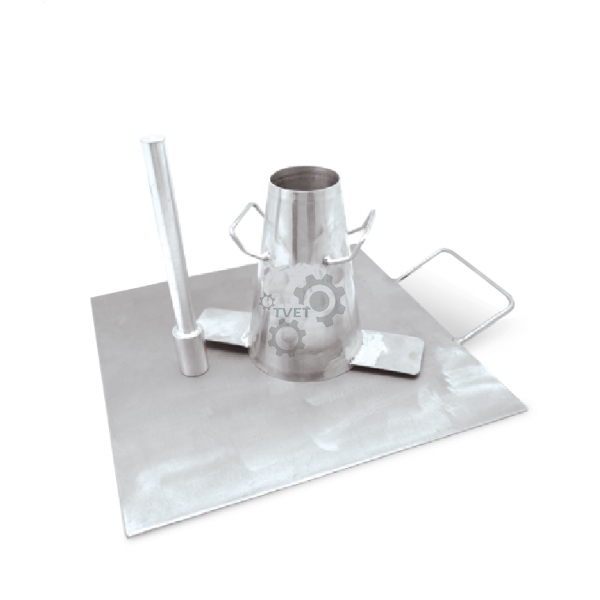

The Mini Slump Cone Test Apparatus from Tvet Equipments is a scaled-down version of the standard concrete slump cone, used to assess the consistency and workability of cement paste, mortar, and grout mixes where the full-size Abrams cone is impractical.
How It Works
The mini cone is filled with fresh mortar, paste, or grout in the same manner as a standard slump test, then lifted vertically away from the sample. The sample is allowed to settle or spread under its own weight, and the resulting slump (vertical settlement) or spread (horizontal flow) is measured, giving a quick indicator of medium-to-high workability mixes at a scale better suited to paste and mortar than the full-size cone.
Technical Specifications
| Parameter | Specification |
|---|---|
| Top Diameter | 50 mm |
| Base Diameter | 100 mm |
| Height | 150 mm |
| Approx. Weight | 2.9 kg |
Applications
The Mini Slump Cone is used to assess consistency and workability of cement paste, mortar, and grout, scaled from the principles of the standard slump test in ASTM C143 / IS 1199, in cement and mortar QC laboratories and grout mix design work where the standard-size slump cone is too large for the sample volume available.
Related Products & Category
Part of Tvet Equipments' Cement & Mortar Testing Equipments range, used alongside the Transparence Acrylic Mini Slump Cone Test Apparatus for workability assessment of pastes and mortars.
Frequently Asked Questions
Q1. How does the mini slump cone differ from a standard slump cone?
It is much smaller (50 mm top, 100 mm base, 150 mm height) than the standard Abrams cone, making it suited to testing cement paste, mortar, and grout samples rather than full-scale concrete.
Q2. What does the test measure?
It measures either the vertical slump or the horizontal spread of the sample after the cone is lifted, both indicators of the mix's consistency and workability.
Q3. What mixes is this apparatus suited for?
It is suited to medium and high workability mixes such as cement paste, mortar, and grout, where the sample volume is too small for a standard-size slump cone.
Request a Quote
For pricing, lead times, or technical specifications on the Mini Slump Cone Test Apparatus, contact Tvet Equipments for an indicative quote.
