Transparence Acrylic Mini Slump Cone Test Apparatus Manufacturer,Supplier and Exporter in India
Product Code : TVT-CMTE-10401

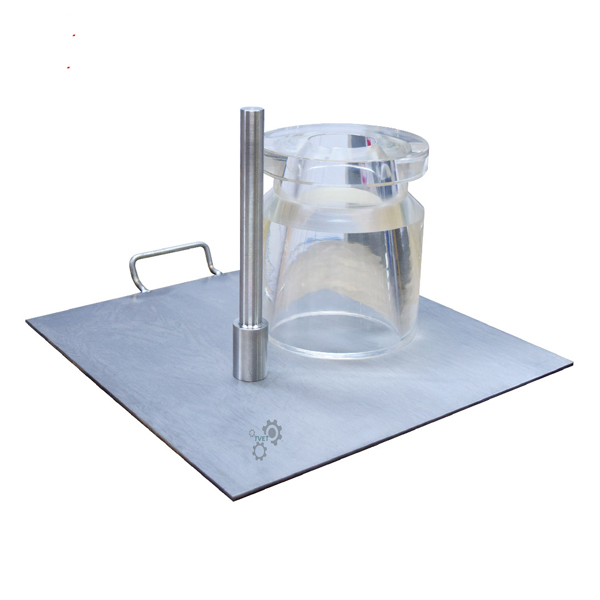

The Transparence Acrylic Mini Slump Cone Test Apparatus from Tvet Equipments determines the consistency and workability of fresh concrete, using a transparent acrylic and stainless steel cone that lets technicians directly observe the sample as it slumps.
How It Works
Fresh concrete is filled into the small transparent cone (100 mm base diameter, 50 mm top diameter, 151 mm height) in layers, each compacted, before the cone is lifted vertically away from the sample. The mix then slumps under its own weight, and the resulting drop in height is measured as an index of workability. The transparent acrylic body lets technicians directly observe the mix's flow and cohesion during the slump, useful for medium and high workability mixes.
Technical Specifications
| Parameter | Specification |
|---|---|
| Base Diameter | 100 mm |
| Top Diameter | 50 mm |
| Height | 151 mm |
| Material | Transparent Acrylic & Stainless Steel |
| Approx. Weight | 4.4 kg |
Applications
This apparatus applies the scaled-down slump cone principle referenced in ASTM C143 / IS 1199 to determine the consistency of medium and high workability fresh concrete mixes, useful for laboratory and quality-control checks where a smaller sample size or direct visual observation of the slumping mix is preferred over a full-size slump cone.
Related Products & Category

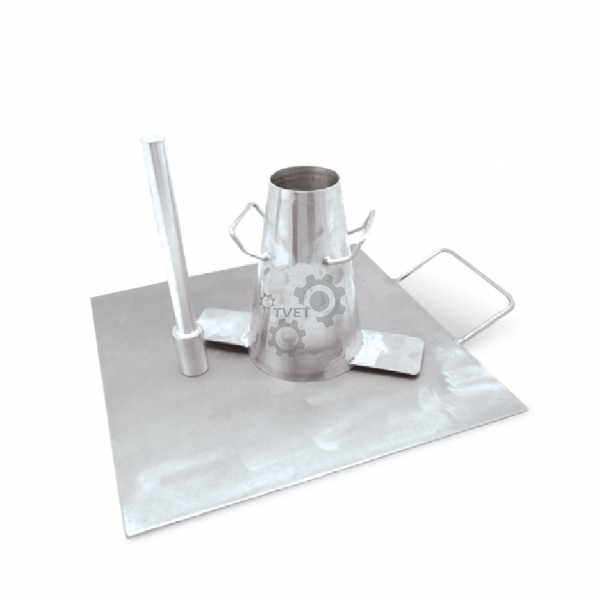

Part of Tvet Equipments' Cement & Mortar Testing Equipments range, alongside the standard Mini Slump Cone Test Apparatus.
Frequently Asked Questions
Q1. What standard governs slump testing?
ASTM C143 and IS 1199 specify the slump cone method for determining the consistency of fresh concrete, which this mini cone applies at a smaller scale.
Q2. Why is the cone made from transparent acrylic?
The transparent body lets technicians directly observe the mix's flow and cohesion behaviour as it slumps, which an opaque metal cone does not allow.
Q3. What workability range is it suited to?
It is designed for determining the consistency of medium and high workability fresh concrete mixes.
Request a Quote
Contact Tvet Equipments for pricing and specifications on the Transparence Acrylic Mini Slump Cone Test Apparatus and our full range of concrete workability testing equipment. Request a quote today.
