Automatic Mortar & Flexural Compression Test Machine Manufacturer,Supplier and Exporter in India
Product Code : TVT-CMTE-10399

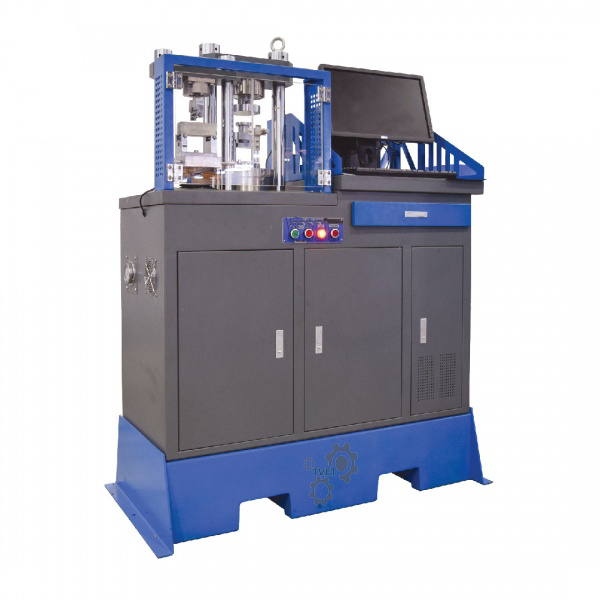

The Automatic Mortar & Flexural Compression Test Machine from Tvet Equipments is a fully computer-controlled dual-frame system that carries out both flexural and compression testing of cement mortar specimens automatically, recording and storing results digitally without manual intervention.
How It Works
The machine is equipped with two independent loading frames — one for compression testing of 50 mm mortar cubes and one for flexural testing of 40 x 40 x 160 mm mortar prisms — each with its own measuring range for accurate performance across both test types. Super Test 7.2 software controls the loading rate automatically at a constant, pre-set speed, displays the load in real time on a test curve, and saves results virtually without limit inside the connected computer, with reports available for immediate printing after each test.
Technical Specifications
| Parameter | Compression | Flexural |
|---|---|---|
| Max. Capacity | 300 kN | 15 kN |
| Piston Stroke | 120 mm | 60 mm |
| Speed Control Range | 0.1-10 kN/s | 5-200 N/s |
| Fixed Top Platen | Ø108 mm | Ø60 mm |
| Fixed Bottom Platen | Ø205 mm | Nil |
| Resolution | 0.01 kN | 0.1 N |
| Parameter | Specification |
|---|---|
| Vertical Clearance | 180 mm |
| Speed Control Accuracy | ±0.1% |
| Load Accuracy | ±1.0% |
| Overall Dimension (W x L x H) | 600 x 1300 x 1620 mm |
| Power | 240 V, 750 W, 1 ph, 50/60 Hz |
| Approx. Weight | 460 kg |
Applications
This machine is used for combined compression and flexural strength testing of cement mortar to EN 196-1, ASTM C109 / ASTM C348 and IS 4031 Part 6, automating the full test sequence for laboratories running high volumes of routine mortar strength testing.
Related Products & Category
Part of Tvet Equipments' Cement & Mortar Testing Equipments range, offering a fully automated alternative to the Mortar Compression & Flexural Test Machine.
Frequently Asked Questions
Q1. What standards does this machine test to?
EN 196-1, ASTM C109 / ASTM C348 and IS 4031 Part 6 all specify the compression and flexural strength test procedures this machine automates for cement mortar specimens.
Q2. Can it test both mortar prisms and mortar cubes?
Yes, its two independent loading frames handle flexural testing of 40 x 40 x 160 mm prisms and compression testing of 50 mm mortar cubes.
Q3. How are test results recorded?
Super Test 7.2 software displays load in real time with a test curve, saves results virtually without limit on the connected computer, and allows immediate report printing after each test.
