Low Strength Touch Screen Compression Machine Manufacturer,Supplier and Exporter in India
Product Code : TVT-CMTE-10429

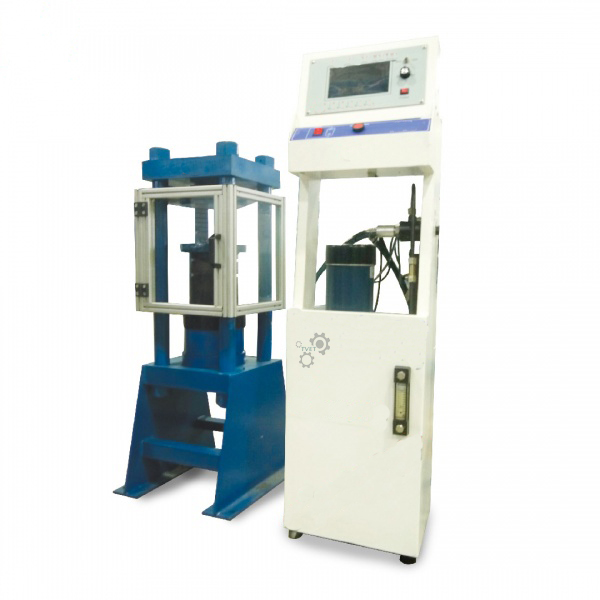

The Low Strength Touch Screen Compression Machine from Tvet Equipments is a rigid, four-column pre-stressed compression testing machine purpose-built for low-strength specimens between 300 and 1000 kN, such as mortar, lightweight concrete and brick, with an advanced digital touch-screen readout for high-accuracy results.
How It Works
The specimen is loaded between the machine's platens on its light-duty but rigid four-column pre-stressed frame, with a 155 mm diameter piston ram providing a 50 mm stroke. The advanced digital touch-screen console displays force in real time to ±1.0% accuracy, while a maximum overload and piston travel protection system safeguards the machine and specimen against excessive loading or overtravel during testing.
Technical Specifications
| Parameter | Specification |
|---|---|
| Capacity | 300-1000 kN x 0.1 kN |
| Main Frame Dimension (L x W x H) | 300 x 340 x 1108 mm |
| Smart Console Dimension (L x W x H) | 350 x 400 x 1158 mm |
| Piston Ram Diameter | 155 mm |
| Piston Stroke | 50 mm |
| Horizontal Clearance | 210 mm |
| Vertical Clearance | 320 mm |
| Accuracy | ±1.0% |
| Approx. Weight | 420 kg |
| Power | 220 V, 1 ph, 50/60 Hz, 750 W |
Applications
This machine is used for compressive strength testing of low-strength specimens such as mortar, lightweight concrete and brick to ASTM C39 / IS 516 / EN 12390-4, giving laboratories a dedicated, appropriately-ranged and rigidly-built compression tester for materials below the strength range of general high-capacity concrete testing machines.
Related Products & Category
Part of Tvet Equipments' Cement & Mortar Testing Equipments range, an alternative to the Digimatic Compression Machine (Low Strength) 300-1000kN.
Frequently Asked Questions
Q1. What standard governs low-strength compression testing?
ASTM C39, IS 516 and EN 12390-4 all specify compressive strength test procedures for materials within this machine's 300-1000 kN low-strength capacity range.
Q2. How does this compare to the Digimatic Compression Machine (Low Strength)?
Both cover the same 300-1000 kN capacity range for low-strength materials; this touch-screen version features a four-column pre-stressed frame with overload and piston-travel protection alongside its digital readout.
Q3. What safety features does the machine include?
A maximum overload and piston travel protection system guards against excessive loading or ram overtravel during testing.
