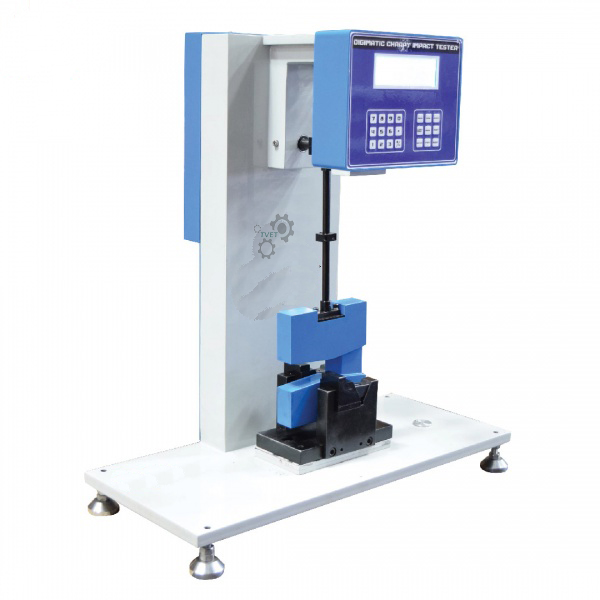

Digital Display Charpy Impact Testing Machine 50J Manufacturer,Supplier and Exporter in India
Product Code : TVT-STE-10618
The Digital Display Charpy Impact Testing Machine 50J is a single-chip microcomputer-controlled Charpy impact tester with digital (LCD) energy display, purpose-built for non-metallic materials.
How It Works
A pendulum hammer is released electrically to strike a notched specimen; the impact energy absorbed by the specimen is measured and shown directly on the LCD display, with the system able to store up to ten readings per sample set, delete individual results, and automatically calculate strength and average strength values before printing a data report.
Technical Specifications
| Parameter | Specification |
|---|---|
| Impact Energy | 50 Joules |
| Pendulum Torque (standard configuration) | 50 J pendulum, PL = 25.77 Nm |
| Dial Indexing Angle | 1/100 |
| Impact Speed | 3.8 m/s |
| Pendulum Angle | 160° |
| Round Angle of Impact Cutting Edge | R = 2 ± 0.5 mm |
| Round Angle of the Jaw | R = 1 ± 0.1 mm |
| Impact Blade Angle | 30° |
| Distance Between Pendulum Centre & Sample Centre | 380 mm |
| Accuracy of Energy | 0.001 J |
| Span of Support | 95 mm |
| Energy Loss | 0.5% |
| Dimension | 550 x 350 x 850 mm |
| Weight | 160 kg |
Applications
Data-quality note: per its source specification, this machine is designed for non-metallic materials — hard plastics, fibre-reinforced composites, glass-fibre-reinforced plastic, ceramics, asbestos and similar — and is equipped with both V-notch and U-notch fixtures, rather than being a metals-only Charpy machine. It complements the metals-focused Semi Auto Pendulum Impact Tester in the Tvet Equipments range for laboratories that need to test non-metallic specimens alongside steel.
Related Products & Category
This machine is part of the Steel Testing Equipments range at Tvet Equipments. Related machines include: Semi Auto Pendulum Impact Tester.
Frequently Asked Questions
What materials can this machine test?
Per its specification it is intended for non-metallic materials such as hard plastics, fibre-reinforced composites, glass-fibre-reinforced plastic, ceramics and asbestos, using V-notch or U-notch specimens.
How is the impact energy displayed?
A single-chip microcomputer controls the test and displays the absorbed impact energy on an LCD, with automatic strength/average-strength calculation and a printable data report.
How many samples can one test set record?
The system can record one to ten data points per sample set, with individual results deletable before the final report is printed.
Request a Quote
Looking to buy or get pricing for this machine? Request a quote from Tvet Equipments and our team will get back to you with indicative pricing and lead times.
