Flow Table Apparatus 15kg Manufacturer,Supplier and Exporter in India
Product Code : TVT-CMTE-10417

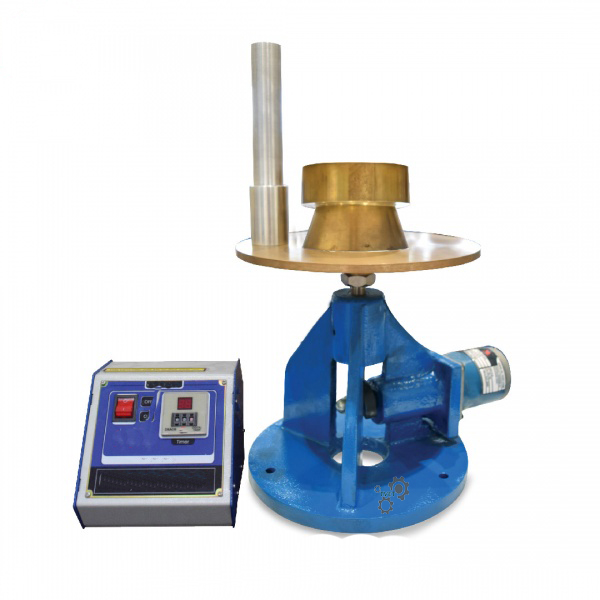

The Flow Table Apparatus 15kg from Tvet Equipments determines the consistency and flow of fresh mortar and building lime using a 300 mm cast iron flow table, built to the European flow table testing method for mortar consistency.
How It Works
A mortar or lime specimen is filled into a cone mould placed at the centre of the 300 mm cast iron table. The mould is removed and the table is raised and dropped through a fixed 10 mm height for a set number of cycles, causing the material to spread outward. The resulting increase in specimen diameter is measured and expressed as a flow value, giving a standardised consistency reading. Both hand-operated and motorised versions are available.
Technical Specifications
| Parameter | Hand Operated | Motorized |
|---|---|---|
| Power | - | 220 V, 1 ph, 50/60 Hz |
| Parameter | Specification |
|---|---|
| Dimension (L x W x H) | 380 x 300 x 245 mm |
| Table Diameter | 300 mm, Cast Iron |
| Height of Drop | 10 mm |
| Flow Table Weight | 4.2-4.5 kg |
| Approx. Weight | 15 kg |
Applications
This larger Flow Table Apparatus applies the flow-table method to EN 1015-3 (determination of consistence of fresh mortar) and EN 459-2 (building lime test methods), the European standards specifying a 300 mm table and 10 mm drop height, distinct from the 254 mm/12.7 mm ASTM C230 table used elsewhere in Tvet Equipments' range.
Related Products & Category
Part of Tvet Equipments' Cement & Mortar Testing Equipments range, alongside the ASTM-standard Flow Table Apparatus.
Frequently Asked Questions
Q1. What standard governs this flow table's dimensions?
EN 1015-3 and EN 459-2 specify the 300 mm cast iron table and 10 mm drop height used by this apparatus, the European approach to mortar and building lime consistency testing.
Q2. How does this differ from Tvet Equipments' other Flow Table Apparatus?
This 15 kg unit uses a 300 mm cast iron table with a 10 mm drop to EN 1015-3, while the standard Flow Table Apparatus uses a 254 mm brass table with a 12.7 mm drop to ASTM C230 / ASTM C1437 — buyers should select the version matching their required test standard.
Q3. Is it suitable for building lime testing as well as mortar?
Yes, it is used for determining the consistency, flow and workable life of both mortars and building limes.
Request a Quote
Contact Tvet Equipments for pricing and specifications on the Flow Table Apparatus 15kg and our full range of mortar and lime consistency testing equipment. Request a quote today.
