Length Comparator Apparatus Manufacturer,Supplier and Exporter in India
Product Code : TVT-CMTE-10421

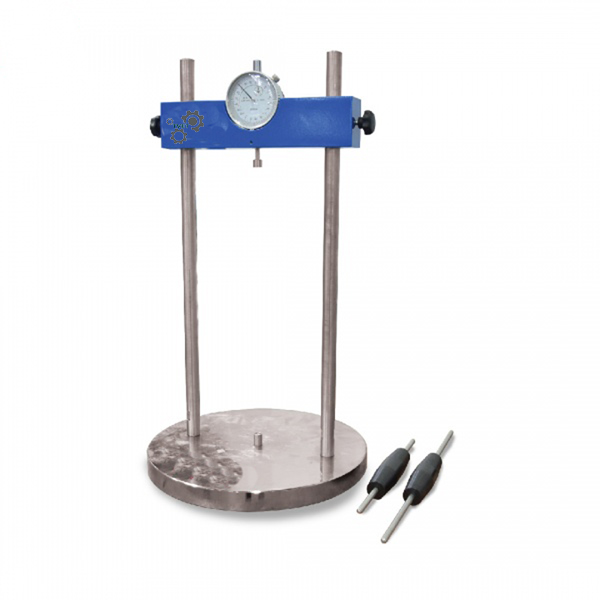

The Length Comparator Apparatus from Tvet Equipments measures the length variation (expansion or shrinkage) of cement and mortar specimens, giving laboratories a precise dial-gauge instrument to complement expansion and shrinkage mould testing.
How It Works
The specimen, fitted with a reference rod between its embedded gauge studs, is placed vertically in the comparator's adjustable-height beam frame. The analogue dial gauge, reading to 0.001 mm over a 5 mm range, registers the specimen's length against a calibrated zero reference. Measurements taken at set intervals (before and after curing, drying, or autoclave/Le Chatelier expansion procedures) reveal the specimen's length change. Note: this unit is supplied without the reference rod and setting accessories, which must be ordered separately.
Technical Specifications
| Parameter | Specification |
|---|---|
| Dial Gauge Range | 5 mm x 0.001 mm |
| Dimension | 225 mm dia. x 450 mm height |
| Approx. Weight | 11.5 kg |
| Accessories | Reference rod and setting accessories NOT included — order separately |
Applications
The Length Comparator Apparatus is used to measure the length change of cement and mortar specimens to ASTM C490, supporting expansion tests such as autoclave expansion (ASTM C151) and drying shrinkage testing (ASTM C157).
Related Products & Category
Part of Tvet Equipments' Cement & Mortar Testing Equipments range, used together with the Shrinkage Mould and Two Gang Prism Mould.
Frequently Asked Questions
Q1. What standard governs length comparator measurements?
ASTM C490 specifies the apparatus and procedure for measuring length change in hydraulic cement and concrete/mortar specimens.
Q2. Does the unit include the reference rod?
No, this unit is supplied without the reference rod and setting accessories, which must be ordered separately.
Q3. What tests use this apparatus?
It is used alongside expansion tests such as autoclave expansion (ASTM C151) and drying shrinkage testing (ASTM C157) to measure specimen length change over time.
Request a Quote
Contact Tvet Equipments for pricing and specifications on the Length Comparator Apparatus and our full range of cement dimensional-stability testing equipment. Request a quote today.
