Pressure Filter Manufacturer,Supplier and Exporter in India
Product Code : TVT-BATE-10368

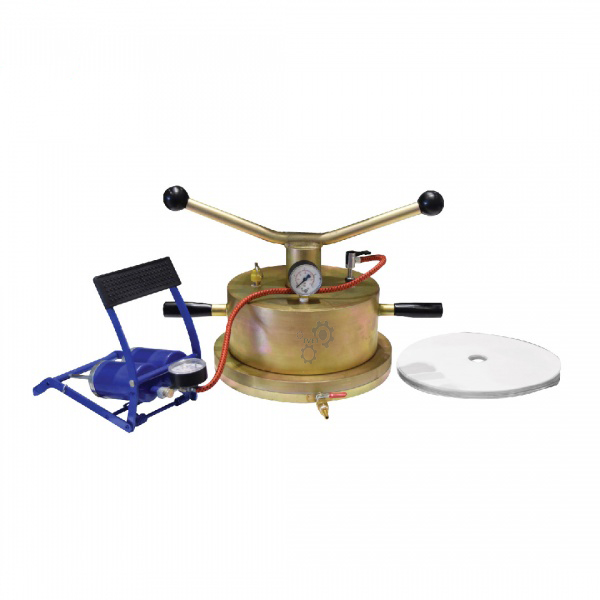

The Pressure Filter from Tvet Equipments is a plated-steel pressure vessel with a filter support and pressure gauge, used to filter and determine the bitumen content of an extraction solution using the pressure filtration method. Note: the required test sieve and filter funnel are not included and must be ordered separately.
How It Works
The bitumen-solvent extract solution is loaded into the pressure vessel above a filter support fitted with a test sieve and filter funnel. Air pressure, monitored on the vessel's built-in gauge, forces the solution through the filter media, separating fine mineral matter from the bitumen-bearing solvent, which passes through for measurement and further recovery testing.
Technical Specifications
| Parameter | Specification |
|---|---|
| Overall Dimension | 292 mm dia. x 382 mm |
| Pressure Gauge Range | 0-58 psi / 0-4 bar |
| Approx. Weight | 24 kg |
| Supplied With | Pressure vessel only — test sieve and filter funnel ordered separately |
Applications
The Pressure Filter is used in bitumen content determination by the pressure filtration method referenced within ASTM D2172, the standard test methods for quantitative extraction of bitumen from bituminous paving mixtures, supporting laboratories running extraction-based binder content testing. It is used in asphalt QC laboratories and highway materials testing facilities.
Related Products & Category
Part of Tvet Equipments' Bitumen Asphalt Testing Equipment range, used alongside the Centrifuge Extractor Apparatus (3000g & 1500g) and the Filtration Apparatus in the bitumen extraction workflow.
Frequently Asked Questions
Q1. What pressure range does the gauge cover?
The built-in gauge reads 0-58 psi (0-4 bar), covering the pressure range typically needed to force the extract solution through the filter media.
Q2. Does the pressure filter include the test sieve?
No, the required test sieve and filter funnel are not included and need to be ordered separately to complete the setup.
Q3. What is the pressure filter used for?
It is used to filter a bitumen-solvent extract solution under pressure, separating mineral fines from the binder-bearing solvent as part of determining bitumen content.
