Non Metallic Material Extensometer Manufacturer,Supplier and Exporter in India
Product Code : TVT-STE-10621

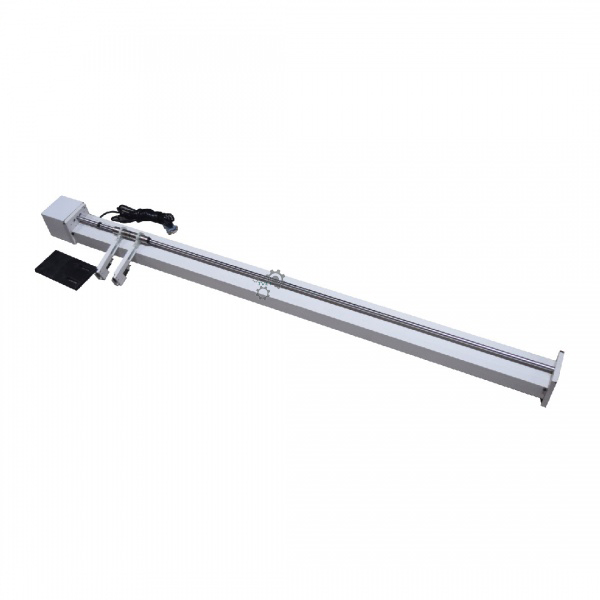

The Non Metallic Material Extensometer is a large-scale electronic extensometer designed to measure the elongation of high-stretch, non-metallic materials such as rubber and plastic during tensile testing.
How It Works
The extensometer clamps onto the test specimen at a set gauge length and electronically tracks the separation of its jaws as the specimen is stretched on a universal testing machine, recording elongation over a long measuring stroke to suit materials capable of very large extensions before failure, well beyond the small strains typical of metals.
Technical Specifications
| Parameter | Specification |
|---|---|
| Gauge Length | 25 – 200 mm |
| Measuring Range | Max. 500 mm |
| Measuring Resolution | 0.2 mm |
| Max. Stroke | 800 mm |
| Accuracy | 1% |
| Jaw Clamping Force | Max. 20 N |
| Specimen Width Allowance | 20 mm |
| Specimen Thickness Allowance | 10 mm |
| Operating Power Supply | 5 VDC |
| Dimension (L x W x H) | 230 x 150 x 1250 mm |
Applications
Large-elongation extensometry is used when tensile testing rubber, elastomers, and plastics on a universal testing machine, where strains can reach many hundreds of percent — far beyond the range of metal-specimen extensometers. It is used as an accessory to a universal testing machine in the Tvet Equipments range whenever a laboratory needs to test non-metallic, high-stretch specimens alongside its steel and reinforcement testing work.
Related Products & Category
This machine is part of the Steel Testing Equipments range at Tvet Equipments. Related machines include: Mechanical Extensometer, Electro-Hydraulic Servo Control Universal Testing Machine 1000kN.
Frequently Asked Questions
What materials is this extensometer designed for?
It is designed for large-elongation, non-metallic materials such as rubber and plastic, rather than metals.
What is its maximum measuring stroke?
It has a maximum stroke of 800 mm, with a measuring range of up to 500 mm.
Can it be used with a standard universal testing machine?
Yes, it is used as an attachment to a universal testing machine to record elongation during a tensile test.
