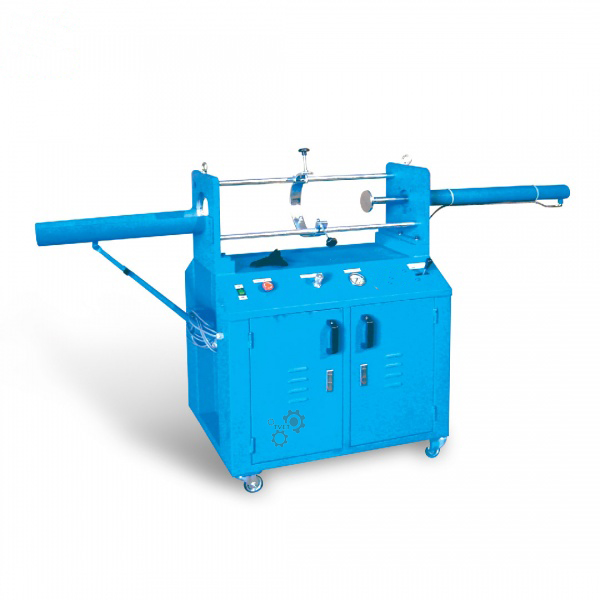

Horizontal Universal Motorised Hyrdaulic Extruder Manufacturer,Supplier and Exporter in India
Product Code : TVT-STE-10596
The Horizontal Universal Motorised Hydraulic Extruder is a heavy-duty, motor-driven unit for extruding undisturbed and disturbed soil samples from thin-walled sample tubes up to 1000 mm long, covering diameters from 38 mm to 150 mm.
How It Works
The sample tube is loaded horizontally into the extruder bed, and a motorised hydraulic ram advances along the tube's full length, pushing the recovered soil out steadily and evenly with minimal disturbance. The horizontal, motorised configuration is suited to longer sample tubes and higher sample throughput than smaller hand-operated units, making it well suited to busy geotechnical laboratories handling long borehole samples.
Technical Specifications
| Parameter | Specification |
|---|---|
| Extruding Diameter Range | 38 mm to 150 mm |
| Maximum Sample Length | Up to 1000 mm |
| Max. Stroke | 1000 mm |
| Dimension | 3700 (L) x 1300 (W) x 1300 (H) mm |
| Approx. Weight | 280 kg |
| Power | 220 V, single phase, 50/60 Hz, 750 W |
Applications
This extruder handles undisturbed samples recovered by thin-walled tube sampling per ASTM D1587: Standard Practice for Thin-Walled Tube Sampling of Soils, as well as disturbed samples from Proctor/CBR-type compaction moulds (ASTM D698/D1557/D1883, IS 2720 Parts 7, 8 & 16), giving high-throughput laboratories a single motorised solution for long-tube and standard-mould extraction alike.
Related Products & Category
This machine is part of the Soil Testing Equipment range at Tvet Equipments. Related machines include: Horizontal Universal Manual Screw Extruder, Sample Tube Extruder 38mm Diameter.
Frequently Asked Questions
What sample lengths can this extruder handle?
It handles thin-walled tube samples up to 1000 mm long, with a matching 1000 mm ram stroke.
Why choose the motorised version over a manual extruder?
The motorised hydraulic drive gives consistent, hands-free extrusion for longer tubes and higher sample volumes, reducing operator effort in busy laboratories.
What diameter range does it cover?
It covers 38 mm to 150 mm diameter samples.
