Flow Table Apparatus Manufacturer,Supplier and Exporter in India
Product Code : TVT-CMTE-10416

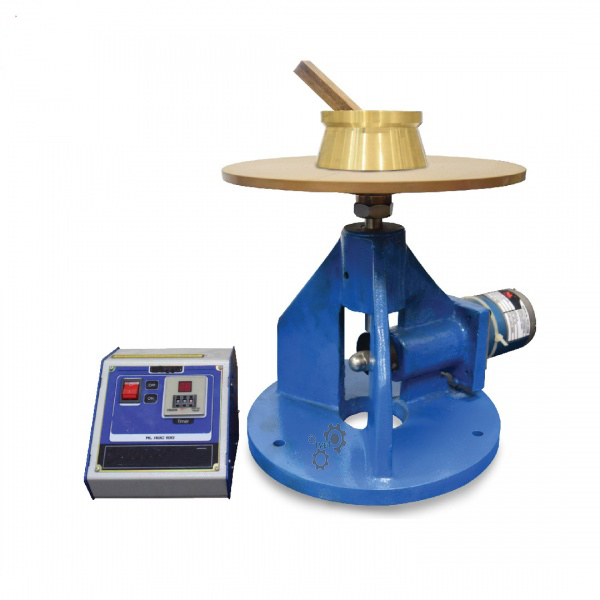

The Flow Table Apparatus from Tvet Equipments determines the consistency and flow of fresh mortar, giving laboratories a standard, code-compliant way to assess workability using a brass flow table and cone-mould specimen.
How It Works
A mortar specimen is filled into a cone mould placed at the centre of the 254 mm brass flow table. The mould is removed and the table is then mechanically raised and dropped through a fixed 12.7 mm height for a set number of cycles, causing the mortar to spread outward. The increase in the specimen's diameter, measured after flow, is expressed as a percentage flow value and used as the consistency result. Both hand-operated and motorised versions are available.
Technical Specifications
| Parameter | Hand Operated | Motorized |
|---|---|---|
| Power | - | 220 V, 1 ph, 50/60 Hz |
| Parameter | Specification |
|---|---|
| Dimension (L x W x H) | 310 x 255 x 245 mm |
| Table Diameter | 254 mm, Brass |
| Height of Drop | 12.7 mm |
| Flow Table Weight | 4.08 kg |
| Approx. Weight | 14.6 kg |
Applications
This Flow Table Apparatus applies the flow-table method to ASTM C230 / ASTM C1437 for determining the consistency of hydraulic cement mortar, an essential test for verifying mortar workability ahead of casting strength-test specimens.
Related Products & Category
Part of Tvet Equipments' Cement & Mortar Testing Equipments range, alongside the larger Flow Table Apparatus 15kg built to the European EN 1015-3 flow table standard.
Frequently Asked Questions
Q1. What standard governs this flow table's dimensions?
ASTM C230 / ASTM C1437 specify the 254 mm table diameter and 12.7 mm drop height used by this apparatus for mortar consistency testing.
Q2. What is the difference between the hand-operated and motorised versions?
Both deliver the same standard drop height and cycle mechanism; the motorised version automates the raising and dropping action via a 220 V motor rather than requiring manual operation.
Q3. How is the flow result calculated?
The increase in the mortar specimen's diameter after the prescribed number of table drops is measured and expressed as a percentage flow value.
