Flow Cone Manufacturer,Supplier and Exporter in India
Product Code : TVT-CMTE-10386

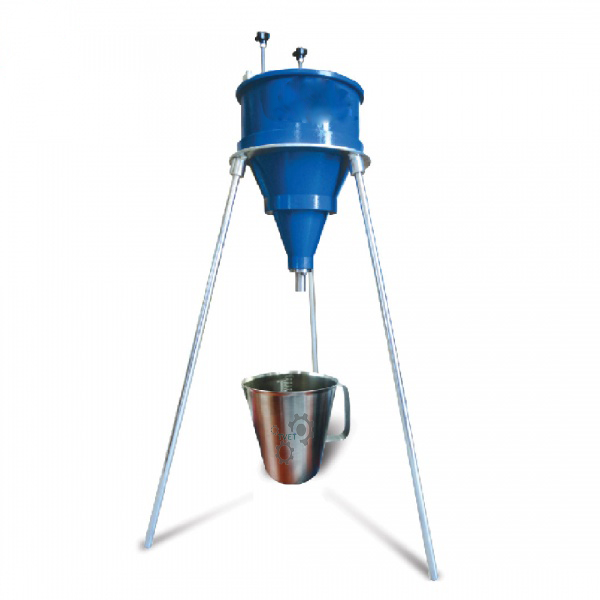

The Flow Cone from Tvet Equipments is a larger-capacity, aluminium flow-testing instrument used to assess the flow properties of drilling muds, grouts and other fluid construction materials in both field and laboratory settings, where higher sample volumes or on-site batching checks are required.
How It Works
A larger measured volume of mud, grout or other fluid sample is poured into the cone and discharged through a calibrated base orifice into a graduated receiving vessel, using the same efflux-time principle applied across flow cone testing. Its larger dimensions and aluminium construction make it robust for repeated field use during drilling mud circulation checks and site batching trials, while still delivering the same directly comparable efflux-time consistency index as the compact laboratory version.
Technical Specifications
| Parameter | Specification |
|---|---|
| Dimension (L x W x H) | 460 x 410 x 780 mm |
| Material | Aluminium |
| Approx. Weight | 5.1 kg |
Applications
This larger-capacity Flow Cone is used for efflux-time flow testing of drilling muds to API RP 13B-1 (Marsh funnel viscosity) and of cement-based grouts to ASTM C939, supporting field quality control on drilling rigs, ground improvement sites and larger-batch grouting operations where a bigger sample volume or more robust field-grade construction is needed.
Related Products & Category
Part of Tvet Equipments' Cement & Mortar Testing Equipments range, complementing the compact Flow Cone Apparatus and the Sand Content Kit used for drilling mud quality checks.
Frequently Asked Questions
Q1. What is the difference between this Flow Cone and a standard Marsh funnel?
This Flow Cone follows the same efflux-time flow-measurement principle referenced in API RP 13B-1 (Marsh funnel viscosity) for drilling mud testing, sized and constructed for field and larger-batch use.
Q2. Why is this version larger and made of aluminium rather than stainless steel?
The larger aluminium construction is suited to bigger sample volumes and repeated field handling on drilling and grouting sites, where portability and durability under site conditions matter more than the compact bench-top form factor of the smaller Flow Cone Apparatus.
Q3. Can this Flow Cone be used for both drilling mud and grout testing?
Yes, the same efflux-time principle applies to both drilling muds (per API RP 13B-1) and cement-based grouts (per ASTM C939), making it a versatile field and laboratory instrument.
Request a Quote
Contact Tvet Equipments for pricing and specifications on the Flow Cone and our full range of drilling mud and grout testing instruments. Request a quote today.
