Multifunction Vane Thermo-anemometer Manufacturer,Supplier and Exporter in India
Product Code : TVT-MTE-10709

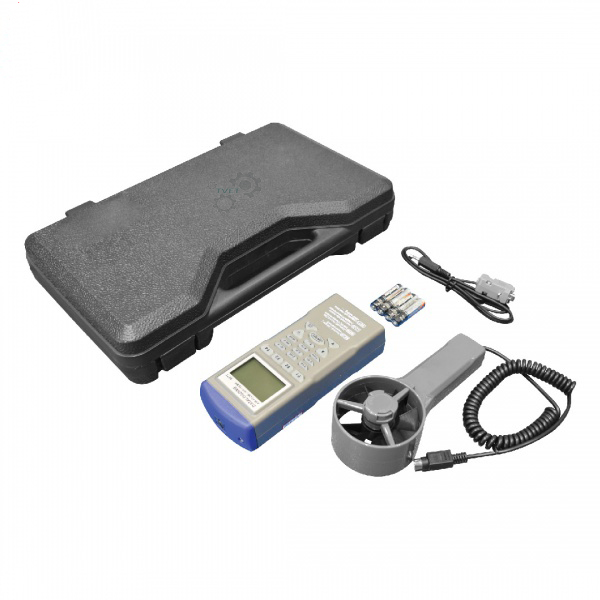

The Multifunction Vane Thermo-anemometer is a handheld instrument that measures air velocity, air volume, temperature, and relative humidity in a single device.
How It Works
A rotating vane sensor measures air velocity as it passes through the probe head, which the instrument combines with a user-entered duct or opening area to calculate air volume flow; separate integrated sensors measure temperature and relative humidity, all shown on the unit's digital display, with a serial data output available for logging readings to an external device.
Technical Specifications
| Parameter | Specification |
|---|---|
| Air Velocity Range | 118 to 6299 ft/min (0.6 to 32 m/s) |
| Air Velocity Accuracy | ±5% of reading or last significant digit |
| Temperature Range | -4 to 140°F (-20 to 60°C) |
| Temperature Accuracy | ±1°F (±0.6°C) |
| Relative Humidity Range | 0 to 100% |
| Relative Humidity Accuracy | ±3% at 25°C from 10-90% RH; ±5% outside this range |
| Air Volume Range | 0 to 99999 (CFM or m³/s) |
| Extended Temperature Range | -7.6 to 158°F (-20 to 70°C) |
| Display | 1 x 1.8″ (26 x 45mm) |
| Serial Communications | 9600bps, 8 data bits, no parity |
| Power | 4 x AAA alkaline batteries, user-replaceable, 100 hours life |
| Vane Diameter | 3″ (77mm) |
| Weight | 6 oz (170g) |
Applications
Multifunction thermo-anemometers are used to measure ventilation and air-flow conditions in curing rooms, laboratory HVAC systems, and general environmental monitoring, giving a single handheld instrument for air velocity, air volume, temperature, and humidity checks.
Related Products & Category
This machine is part of the Miscellaneous Testing Equipments range at Tvet Equipments. Related machines include: Analogue Thermo Hygrometer.
Frequently Asked Questions
What parameters does this instrument measure?
It measures air velocity, air volume, temperature, and relative humidity, all with a single handheld device.
What is its air velocity range?
It measures air velocity from 118 to 6299 ft/min (0.6 to 32 m/s), with ±5% accuracy.
How is it powered?
It runs on 4 user-replaceable AAA alkaline batteries, rated for approximately 100 hours of use.
