Dial Indicator Manufacturer,Supplier and Exporter in India
Product Code : TVT-MTE-10649

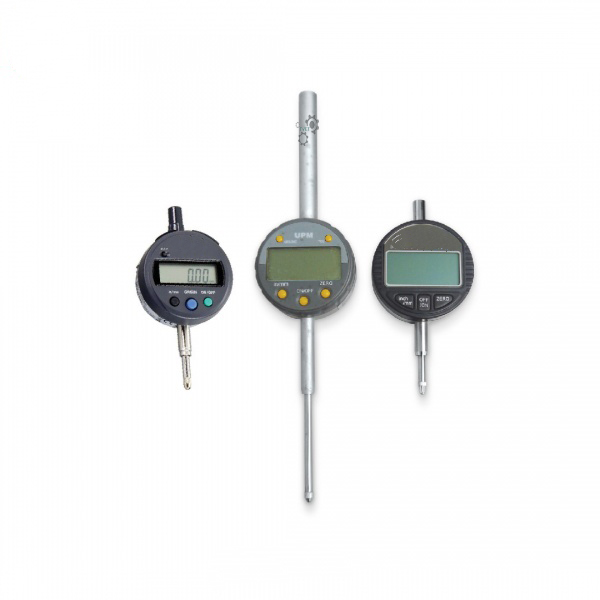

The Dial Indicator is a precision measuring instrument used to measure small linear displacements, available in a range of analogue and digital models covering different ranges and resolutions.
How It Works
A spring-loaded plunger contacts the surface or specimen being measured, and its linear movement is transmitted through an internal gear train (analogue models) or electronic sensor (digital models) to a dial or digital display, giving a precise reading of displacement used across compression, compaction, and general dimensional measurement setups.
Technical Specifications
| Parameter | Specification |
|---|---|
| Analogue Models | 25mm x 0.01mm; 5mm x 0.001mm; 10mm x 0.01mm; 50mm x 0.01mm; 5mm x 0.002mm; 12mm x 0.002mm |
| Digital Models | 12.7mm x 0.001mm; 25.4mm x 0.001mm; 12.7mm x 0.01mm; 6.5mm x 0.001mm; 25mm x 0.01mm |
Applications
Dial indicators are used throughout construction-material and soil testing wherever a small displacement or deformation needs to be measured precisely — from compaction mould extraction gauges to deflection measurement on flexural and consolidation apparatus — with the range and resolution selected to match the accuracy the test requires.
Related Products & Category
This machine is part of the Miscellaneous Testing Equipments range at Tvet Equipments. Related machines include: Vacuum Pump.
Frequently Asked Questions
What is a dial indicator used for?
It is used to measure small linear displacements precisely, such as deformation or deflection in a test setup, or the movement of a component in a mould or apparatus.
What is the difference between the analogue and digital models?
Analogue models read via a mechanical dial and gear train, while digital models use an electronic sensor and digital display; both are available across a range of measuring ranges and resolutions.
What resolutions are available?
Resolutions range from 0.01mm on standard models down to 0.001mm on the finest analogue and digital models.
