Display Data Logger Manufacturer,Supplier and Exporter in India
Product Code : TVT-MTE-10714

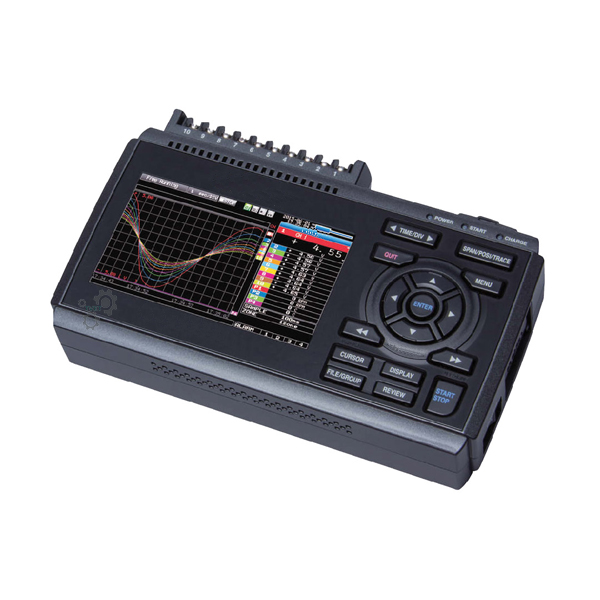

The Display Data Logger is a multi-channel data acquisition instrument with a 4.3-inch colour display, offering 10 isolated analog channels, 4 digital channels and 4 alarm outputs for comprehensive process and environmental monitoring in the laboratory or plant. With 4GB of internal memory, an SDHC card slot (supporting cards up to 32GB) and a USB PC interface, it is built to record extended datasets and transfer them for analysis using the included APS software.
How It Works
Each of the ten analog channels is fully isolated with balanced input, and the unit scans channels sequentially for sampling via screw (M3) terminal connections. It accepts a wide range of input signal types — voltage (20 mV to 100 V and 1-5V full scale), thermocouple types K, J, E, T, R, S, B, N and W (WRe5-26), and relative humidity via an optional humidity sensor — with selectable moving-average filtering (off, 2, 5, 10, 20 or 40 samples) to smooth noisy readings. A 16-bit Sigma-Delta A/D converter provides effective resolution of 1/40,000 of the measuring range, and the instrument supports wireless LAN connectivity for remote monitoring and smartphone access, along with expandable memory via SD card for long-duration logging runs.
Technical Specifications
| Parameter | Specification (Manufacturer-Stated) |
|---|---|
| Display | 4.3-inch colour display |
| Analog Channels | 10, individually isolated, balanced input |
| Digital Channels | 4 |
| Alarm Outputs | 4 |
| Internal Memory | 4GB, expandable via SDHC card (up to 32GB) |
| Input Terminal | Screw terminal (M3 screw) |
| Voltage Range | 20, 50, 100, 200, 500 mV; 1, 2, 5, 10, 20, 50, 100 V & 1-5V F.S. |
| Thermocouple Types | K, J, E, T, R, S, B, N, and W (WRe5-26) |
| Humidity Range | 0-100% RH (with optional humidity sensor, option B-530) |
| Filter | Off / 2 / 5 / 10 / 20 / 40 sample moving average |
| Measurement Accuracy | ±0.1% of F.S. (voltage) |
| A/D Converter | Sigma-Delta type, 16-bit (effective resolution 1/40,000 of full range) |
| Max Sampling Interval | Up to 10 ms |
| Connectivity | Wireless LAN, USB PC interface, smartphone access |
| Included | APS software, start-up manual, AC power supply |
Applications
This data logger is used in laboratories and plant environments for multi-point voltage, temperature and humidity monitoring where extended, isolated-channel logging is required — for example, environmental chamber monitoring, equipment qualification runs, and process trend recording. As a general-purpose acquisition instrument, it supports standardized test procedures carried out elsewhere in the lab rather than being tied to a single governing test standard; where it is used for accredited measurement, users should maintain calibration traceability under ISO/IEC 17025.
Related Products & Category
This machine is part of the Miscellaneous Testing Equipments range at Tvet Equipments. Related machines include: Channel Temperature Meter (Datalogger), Electronic Thermometer & Hygrometer with Probe.
Frequently Asked Questions
How many channels does this data logger support?
It offers 10 isolated analog channels plus 4 digital channels and 4 alarm outputs.
What is the internal memory capacity?
It has 4GB of internal memory, expandable using an SDHC card up to 32GB.
Can this logger be monitored remotely?
Yes, it includes wireless LAN capability for remote monitoring and datalogging, including smartphone access.
